Modular quick-swap tank and battery minimize downtime during intensive farming seasons. IP67-rated core components provide long-lasting durability and simplified servicing.

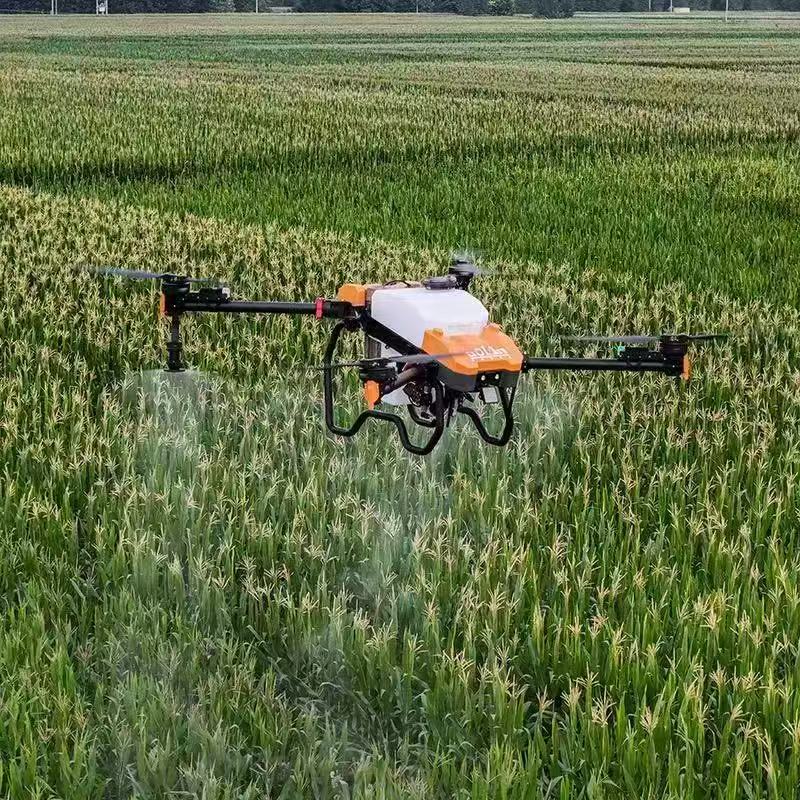

Powerful output covers large farmland rapidly while maintaining precise droplet atomization. Uniform penetration ensures consistent crop protection and higher operational productivity.

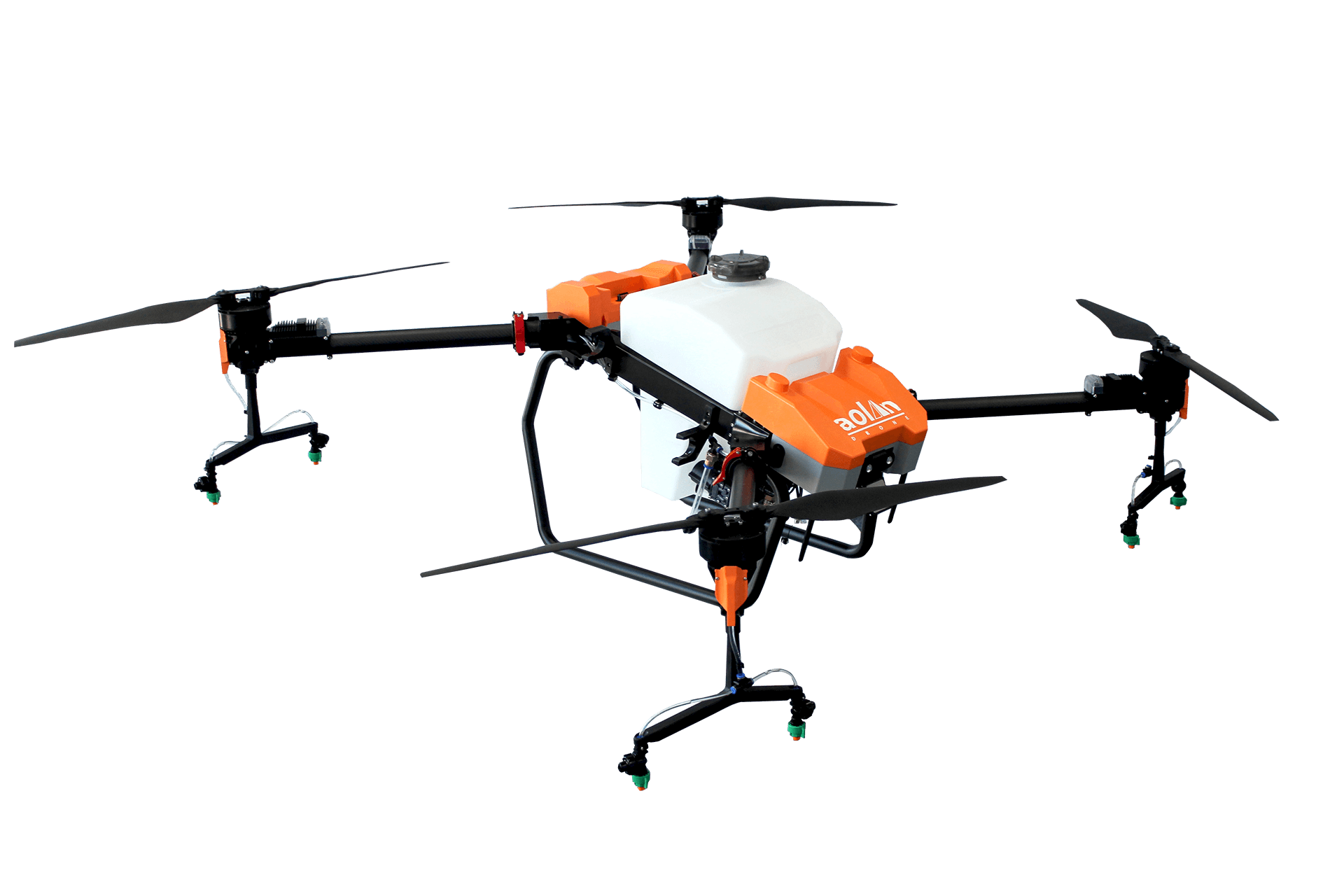

High-atomization nozzles cut pesticide usage by over 20% without compromising coverage. Reduced drift and resource savings lower long-term labor and chemical costs.

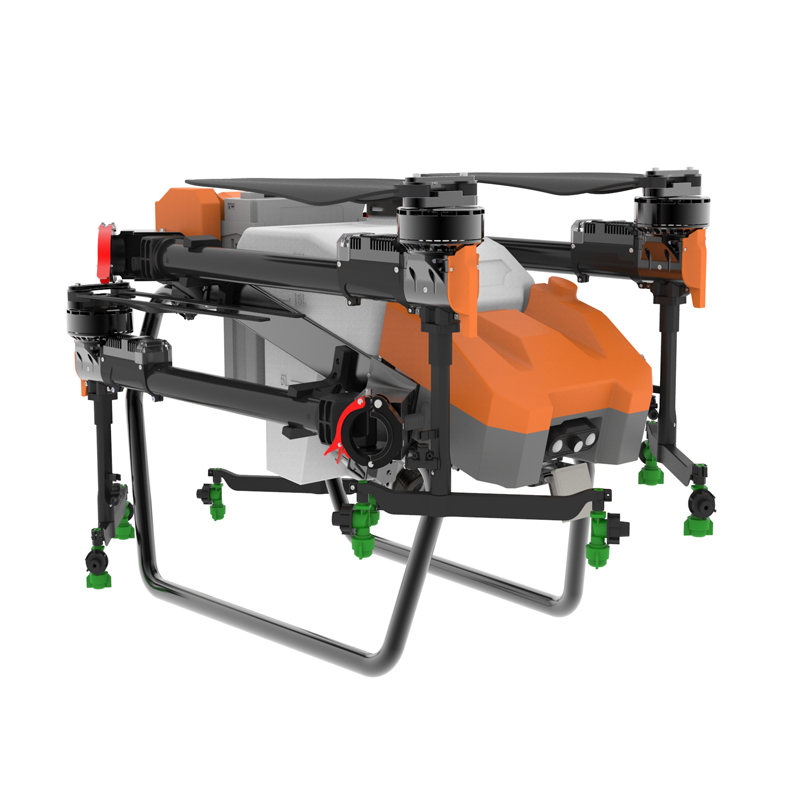

Foldable truss frame significantly reduces storage size for effortless transport in any vehicle. Fully calibrated and tested before shipment—unbox, unfold, and take off immediately.
Operate manually with remote control - Integrated remote control - 5.5-inch large display Ground station, image transmission.

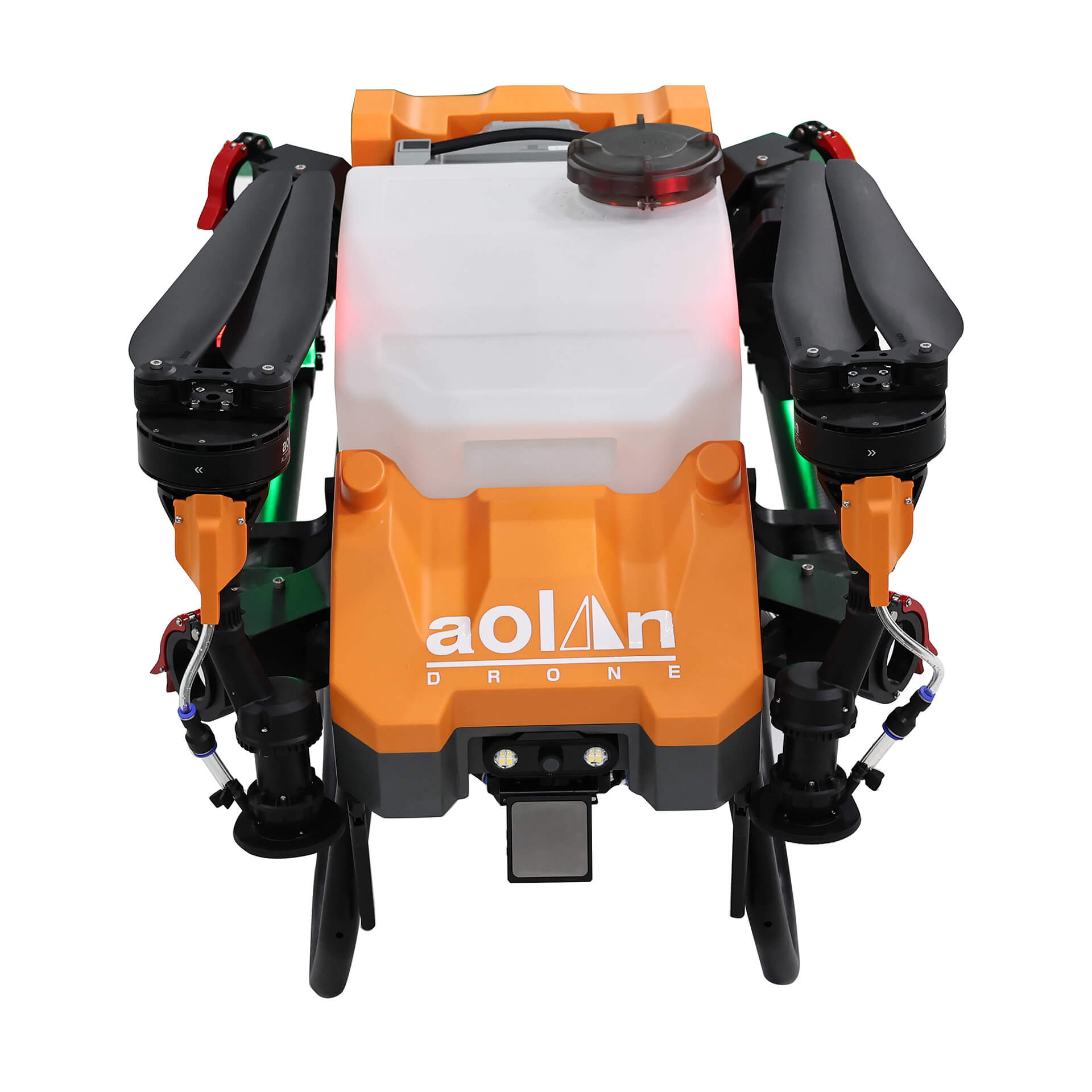

The intuitive foldable design allows farmers to transition from transport to flight in minutes, reducing downtime.

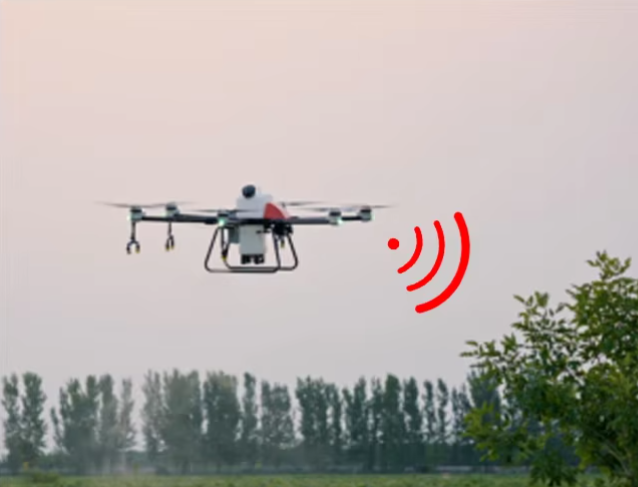

The obstacle avoidance radar system can sense obstacles and the surrounding environment in all environments without interference from dust light. Automatic obstacle avoidance and adjustment function to ensure safety during operation.
Dual led headlights and profile indicators ensure safe flight at night.
This agricultural drone ensures uniform liquid distribution across any terrain with automated operation, requiring minimal training for immediate use.
| Specification | Details |
|---|---|
| Drone configuration | 1*30L whole machine;1*H12 remote control + FPV; 1*app software; 1* obstacle avoidance radar; 1* imitation ground radar; 1* smart battery;1* smart charger 3000W; 1* toolbox;1* aviation aluminum box. |
| Dimensions (Closed) | 955 mm x 640 mm x 630 mm |
| Dimensions (Open) | 2460 mm x 2530 mm x 655 mm |
| Spread size | 2400 mm x 2460 mm x 630 mm |
| Net weight | 24.5 kg(without battery) |
| Pesticide load | 20 L / 20 Kg |
| Max take-off weight | 55 Kg |
| Spray area | 8-10 m |
| Spray efficiency | 12-15 hectares/hour |
| Nozzle | 2 pcs centrifugal nozzles |
| Spray speed | 0-12 m/s |
| Flying height | 0-60 m |
| Work temperature | -10~45℃ |
| Smart battery | 14S 22000 mAh |
| Smart charger | 3000W 60A |
| Transmitter | H12 |
| Packing | Aviation aluminum box |
| Packing size | 1200 mm x 750 mm x 770 mm |
| Packing weight | 100 Kg |
| Extra battery | 14S 22000 mAh |
What is the spray efficiency and coverage area of this agricultural drone?
This drone has a spray width of 8 to 10 meters and achieves a high spray efficiency of 12 to 15 hectares per hour, making it highly effective for rapid coverage of large farmlands.
How does the drone design help in reducing pesticide waste?
Equipped with 2 high-atomization centrifugal nozzles, the drone ensures precise droplet atomization and uniform penetration. This system reduces pesticide usage by over 20% while preventing drift and lowering overall chemical costs.
Is the drone difficult to transport and set up?
No. The drone features a foldable truss frame that reduces its transport size down to 955 mm x 640 mm x 630 mm, fitting easily into vehicles. It comes fully calibrated and tested, allowing for direct unboxing, unfolding, and take-off.
What safety mechanisms are built into the flight system?
The drone includes an obstacle avoidance radar that functions in all environments without dust or light interference, along with dual LED headlights and profile indicators to ensure safe operation during night flights.
What components are included in the standard package configuration?
The standard configuration package includes the 30L drone, an H12 remote control with FPV, flight software, an obstacle avoidance radar, a terrain-following ground radar, a 14S 22000 mAh smart battery, a 3000W smart charger, a toolbox, and a heavy-duty aviation aluminum transport box.
