Modular design with quick-swap tank and battery for minimum downtime. IP67-rated core module ensures durability and simple maintenance.
Covers large farmland quickly with powerful spraying capacity. Fine droplet atomization ensures deeper penetration and uniform crop coverage.
High atomization reduces pesticide usage by over 20%. Low-drift spraying saves labor, water, and chemicals significantly.

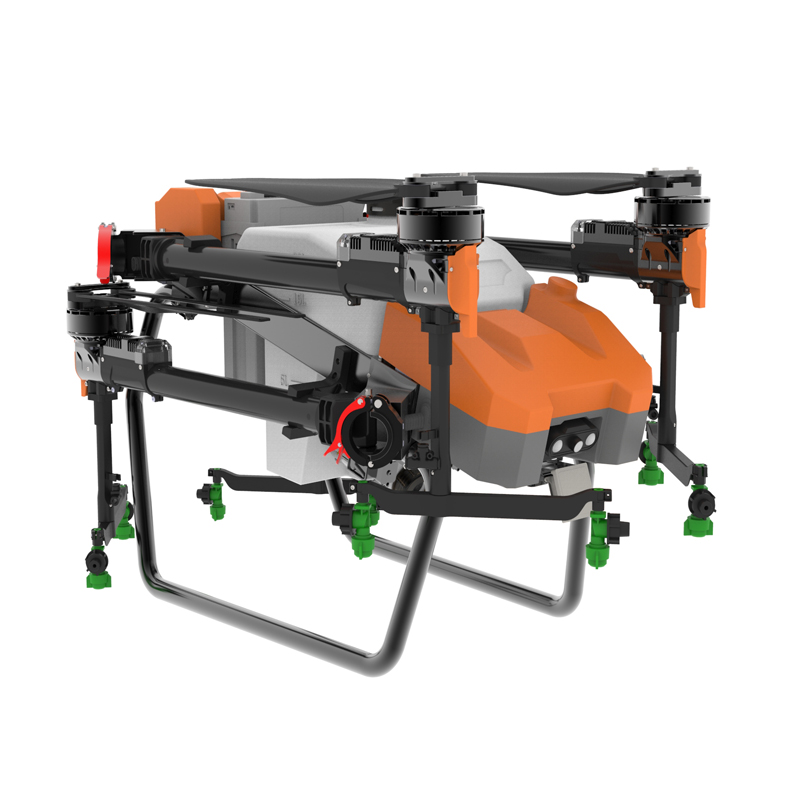

Foldable truss frame reduces size for easy transport in any vehicle. Fully tested before delivery—ready to fly right out of the box.
Manual model - Operate manually with remote control
Integrated remote control featuring a 5.5-inch large display Ground station, providing clear real-time image transmission.
With its compact foldable frame, this drone combines portability with robust agricultural functionality.
Advanced Radar and Night Flight Features
The obstacle avoidance radar system can sense obstacles and the surrounding environment in all environments without interference from dust light.
Equipped with automatic obstacle avoidance and adjustment functions to ensure ultimate safety during operation.
Dual LED headlights and profile indicators ensure safe flight paths during nighttime operations.
Intelligent Terrain Adaptation
With intelligent terrain recognition and automated flight control, this drone delivers professional-grade spraying results with minimal operator input.
| Specification | Details |
|---|---|
| Drone configuration | 1*20L whole machine; 1*H12 remote control + FPV; 1*app software; 1* obstacle avoidance radar; 1* imitation ground radar; 1* smart battery; 1* smart charger 3000W; 1* toolbox; 1* aviation aluminum box. |
| Dimensions (Closed) | 955 mm x 640 mm x 630 mm |
| Spread size | 2400 mm x 2460 mm x 630 mm |
| Net Weight | 25.4 Kg (without battery) |
| Pesticide load | 20 L / 20 kg |
| Max take-off weight | 55 kg |
| Spray area | 4-7 m (from 3 meter height) |
| Spray efficiency | 6-10 hectares/hour |
| Nozzle | 2 pcs centrifugal nozzles |
| Spray flow | 16 L-24 L /min |
| Flying height | 0-60 m |
| Work temperature | -10~45℃ |
| Smart battery | 14S 22000 mAh |
| Smart charger | 3000W 60A |
| Remote Controller | H12 |
| Packing | Aviation aluminum box |
| Packing size | 1200 mm x 750 mm x 770 mm |
| Packing weight | 100 Kg |
| Extra battery | 14S 22000 mAh |
