Features automatic battery swapping with a 3-minute work interval, ensuring drones stay mission-ready without manual intervention.

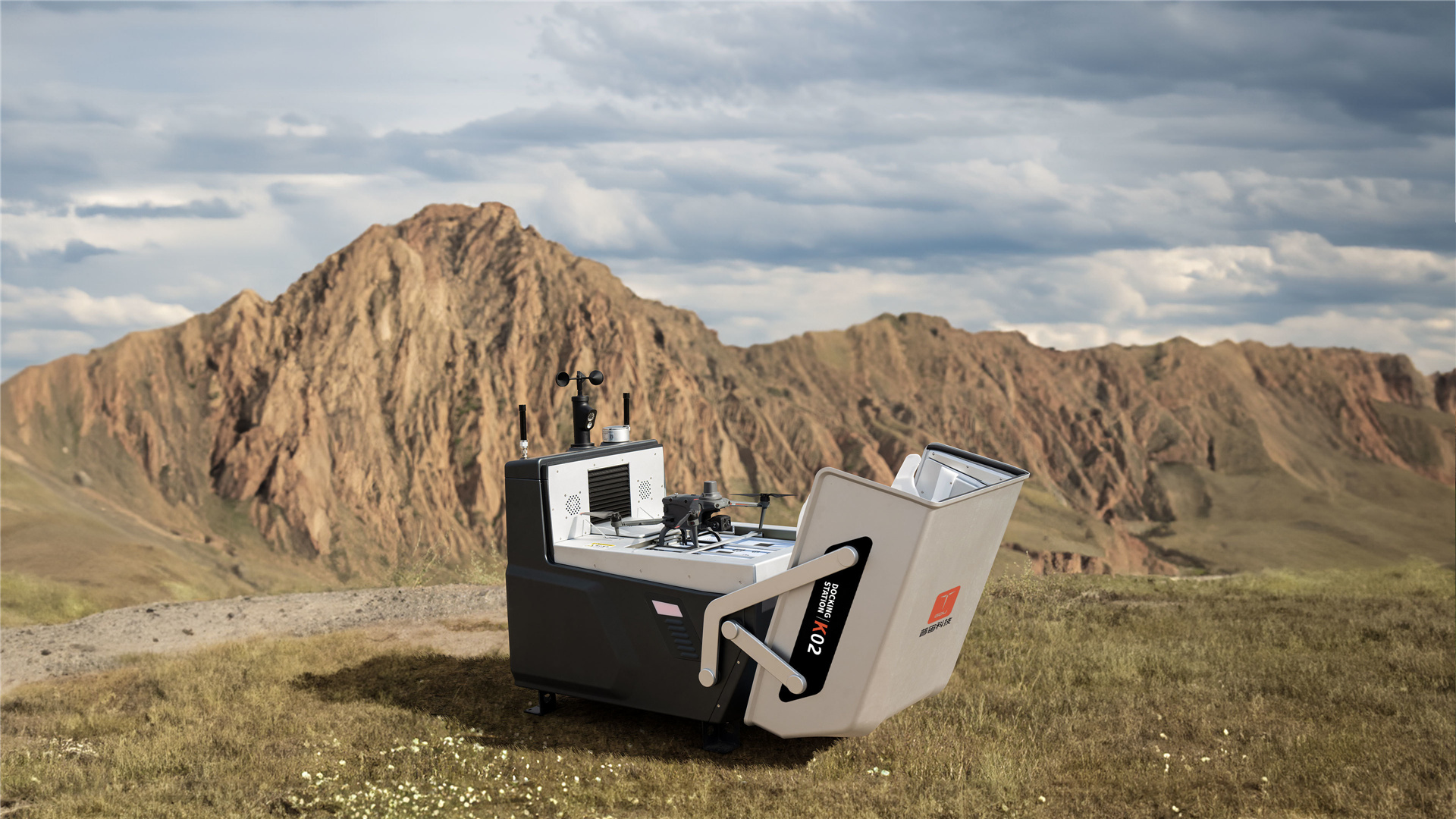

Lightweight design allows for rapid setup and flexible placement, making K02 ideal for mobile and temporary operations.
With an IP55 protection rating and remote monitoring capability, K02 maintains real-time situational awareness and reliable performance in any environment.
Equipped with four integrated backup batteries for continuous, worry-free operation, supporting uninterrupted 24/7 missions.
Integrates auto takeoff, landing, battery swapping, and weather monitoring, enabling fully unmanned drone missions managed remotely via the cloud management platform.
A built-in climate control system maintains optimal operating conditions in extreme environments, ensuring consistent stability and reliability for every mission.
Weighing just 115 kg and requiring only 1 m² of floor space, K02 is easy to transport and deploy, even in tight spaces such as rooftops or elevators.
Built with cloud connectivity and open APIs (API/MSDK/PSDK), K02 seamlessly integrates with multiple enterprise platforms, enabling scalable customization and cross-industry applications.

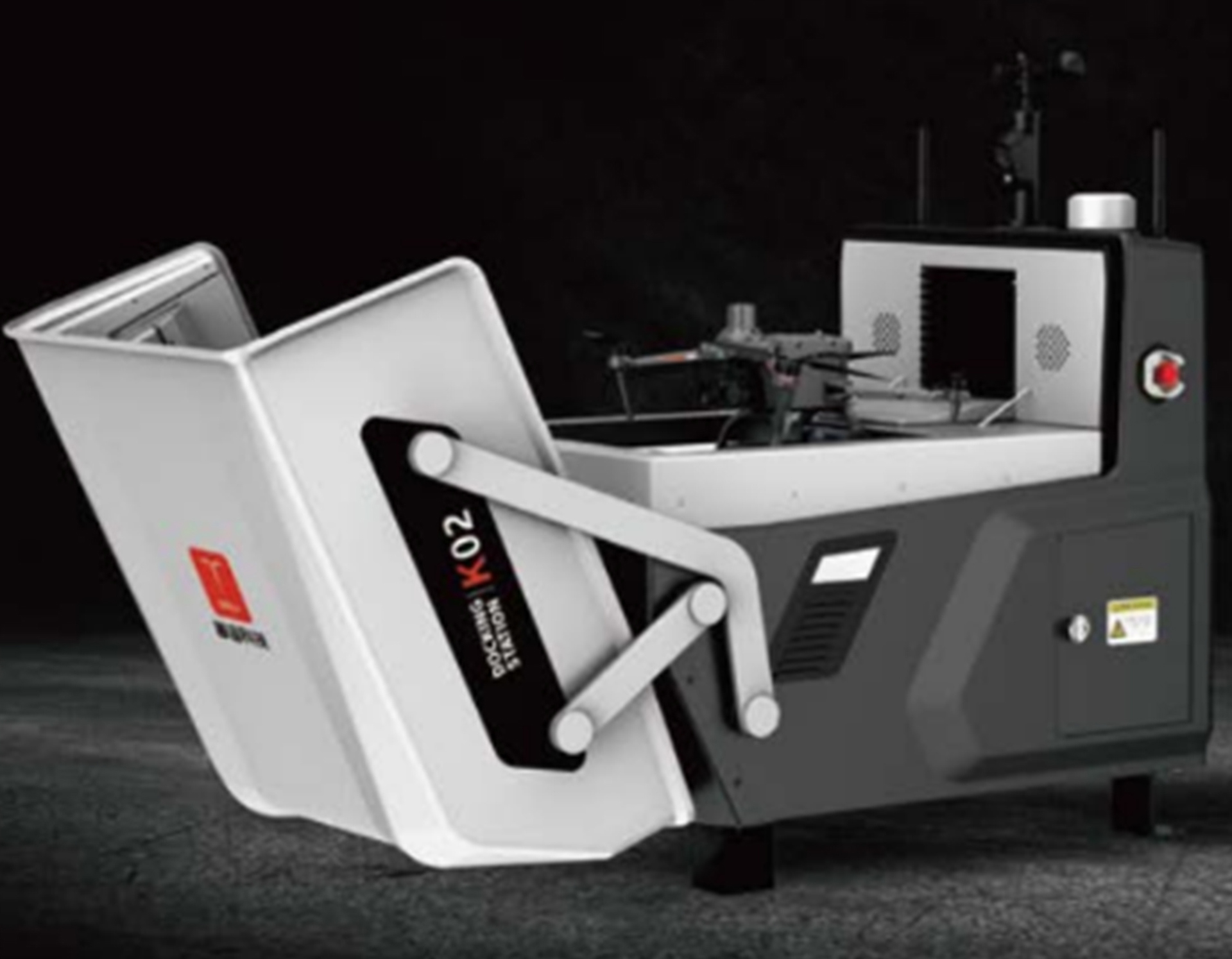

Equipped with a high-speed auto-swapping system supporting up to four batteries, K02 completes autonomous battery replacement in under two minutes, ensuring nonstop drone missions.
| Item | Specification |
|---|---|

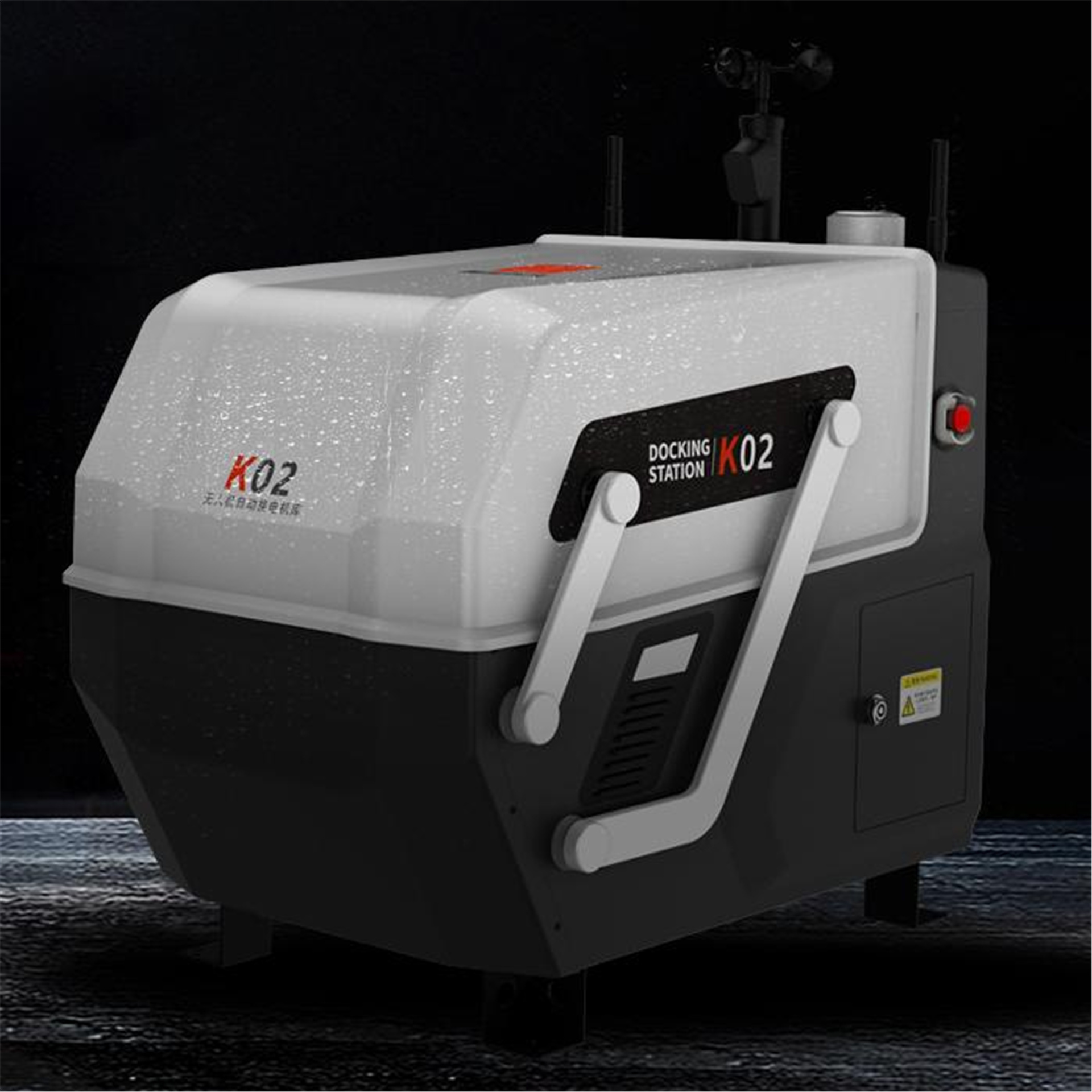

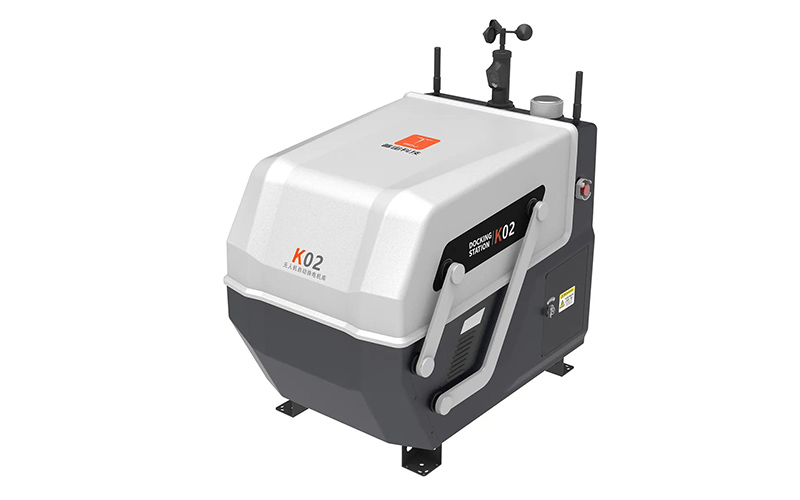

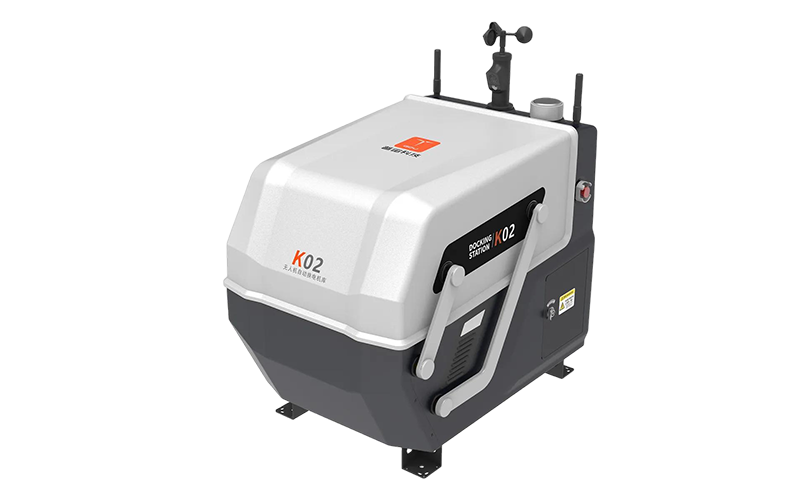

| Product Name | K02 Compact Auto Power-Changing Docking Station |
| Compatible UAV | S200 Series UAVs |
| Main Functions | Automatic battery swapping, auto charging, precision landing, data transmission, remote management |
| Typical Applications | Smart city management, energy inspection, emergency response, ecological and environmental monitoring |
| Dimensions (Cover Closed) | ≤1030 mm × 710 mm × 860 mm |
| Dimensions (Cover Opened) | ≤1600 mm × 710 mm × 860 mm (excluding hyetometer, weather station, antenna) |
| Weight | ≤115 ±1 kg |
| Input Power | 100–240 VAC, 50/60 Hz |
| Power Consumption | ≤1500 W (max) |
| Emergency Battery Backup | ≥5 hours |
| Charging Time | ≤2 minutes |
| Work Interval | ≤3 minutes |
| Battery Capacity | 4 slots (3 standard battery packs included) |
| Auto Power-Changing System | Supported |
| Battery Cabin Charging | Supported |
| Night Precision Landing | Supported |

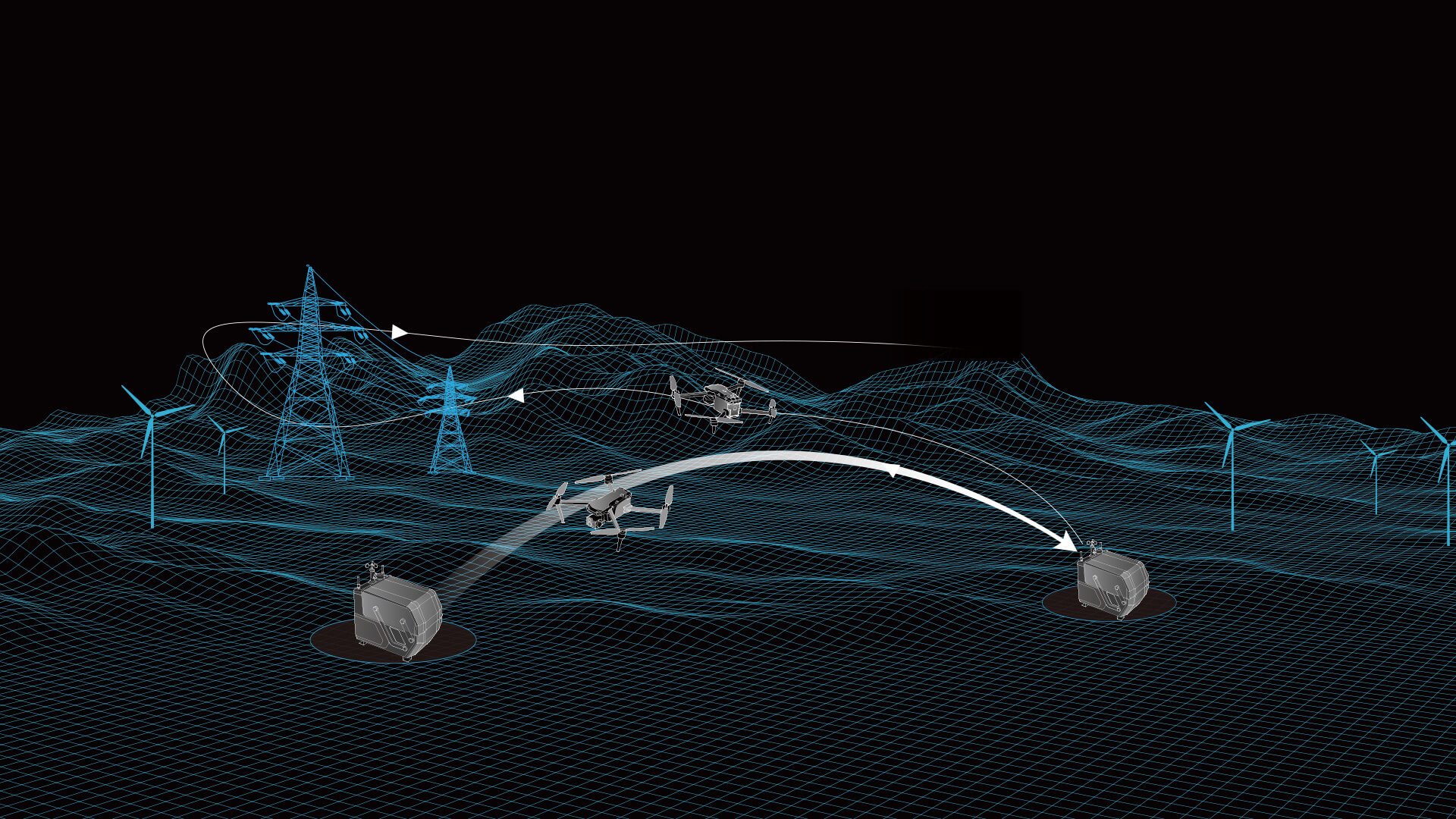

| Leapfrog (Relay) Inspection | Supported |
| Data Transmission Speed (UAV–Dock) | ≤200 Mbps |
| RTK Base Station | Integrated |
| Max Inspection Range | 8 km |
| Wind Resistance | Operation: 12 m/s; Precision Landing: 8 m/s |
| Edge Computing Module | Optional |
| Mesh Networking Module | Optional |
| Operating Temperature Range | –20°C to +50°C |
| Max Operating Altitude | 5,000 m |
| Relative Humidity | ≤95% |
| Antifreezing Function | Supported (heated cabin door) |
| Ingress Protection | IP55 (Dustproof & Waterproof) |
| Lightning Protection | Supported |
| Salt Spray Resistance | Supported |
| External Environmental Sensors | Temperature, humidity, wind speed, rainfall, light intensity |
| Internal Cabin Sensors | Temperature, humidity, smoke, vibration, immersion |
| Camera Monitoring | Dual cameras (interior and exterior) for real-time visual monitoring |
| Remote Management | Supported via Intelligent Management Platform |
| Communication | 4G (SIM optional) |
| Data Interface | Ethernet (API supported) |
The K02 is equipped with a high-speed auto-swapping system that completes autonomous battery replacements in under 2 minutes, ensuring a work interval of no more than 3 minutes to keep missions running continuously.
The K02 is highly compact and lightweight, weighing only 115 ±1 kg. It requires just 1 m² of floor space, with closed dimensions under 1030 mm x 710 mm x 860 mm, making it easy to deploy on rooftops, balconies, or transport in standard elevators.
Yes. The K02 has an IP55 protection rating (dustproof and waterproof), a built-in climate control system, and a heated cabin door to prevent freezing. It operates reliably in temperatures ranging from -20°C to +50°C and has built-in lightning protection and salt spray resistance.
Remote management is handled via the cloud management platform. The docking station features dual cameras (interior and exterior) for real-time visual streaming, along with multiple environmental sensors (temperature, humidity, wind, rainfall, smoke, vibration) to ensure full situational awareness.
Yes, it features cloud connectivity and supports open APIs (including API, MSDK, and PSDK), allowing seamless integration with custom enterprise software platforms and cross-industry applications.
The station includes four integrated backup batteries that provide an emergency power supply for at least 5 hours, ensuring uninterrupted operations and safe retrieval of the drone during power failures.
