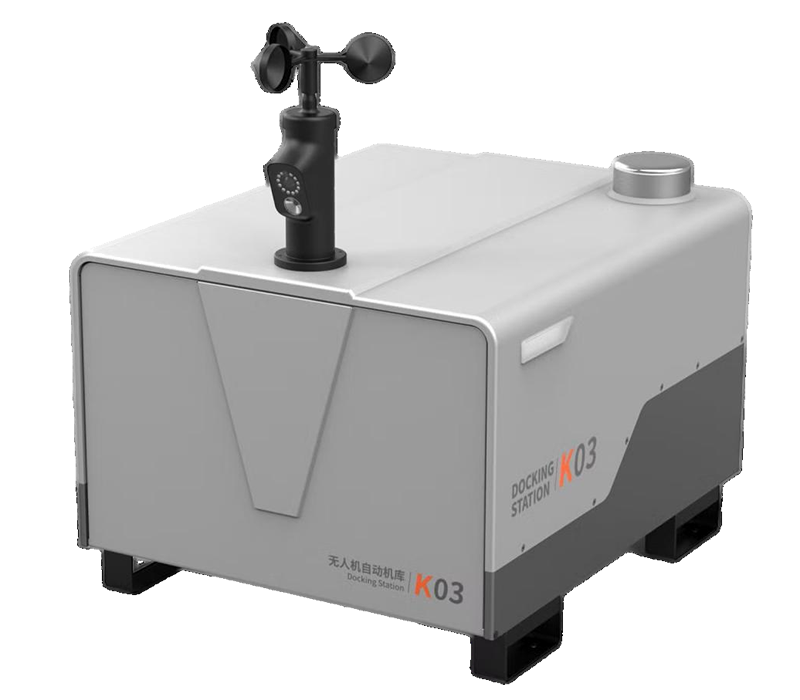

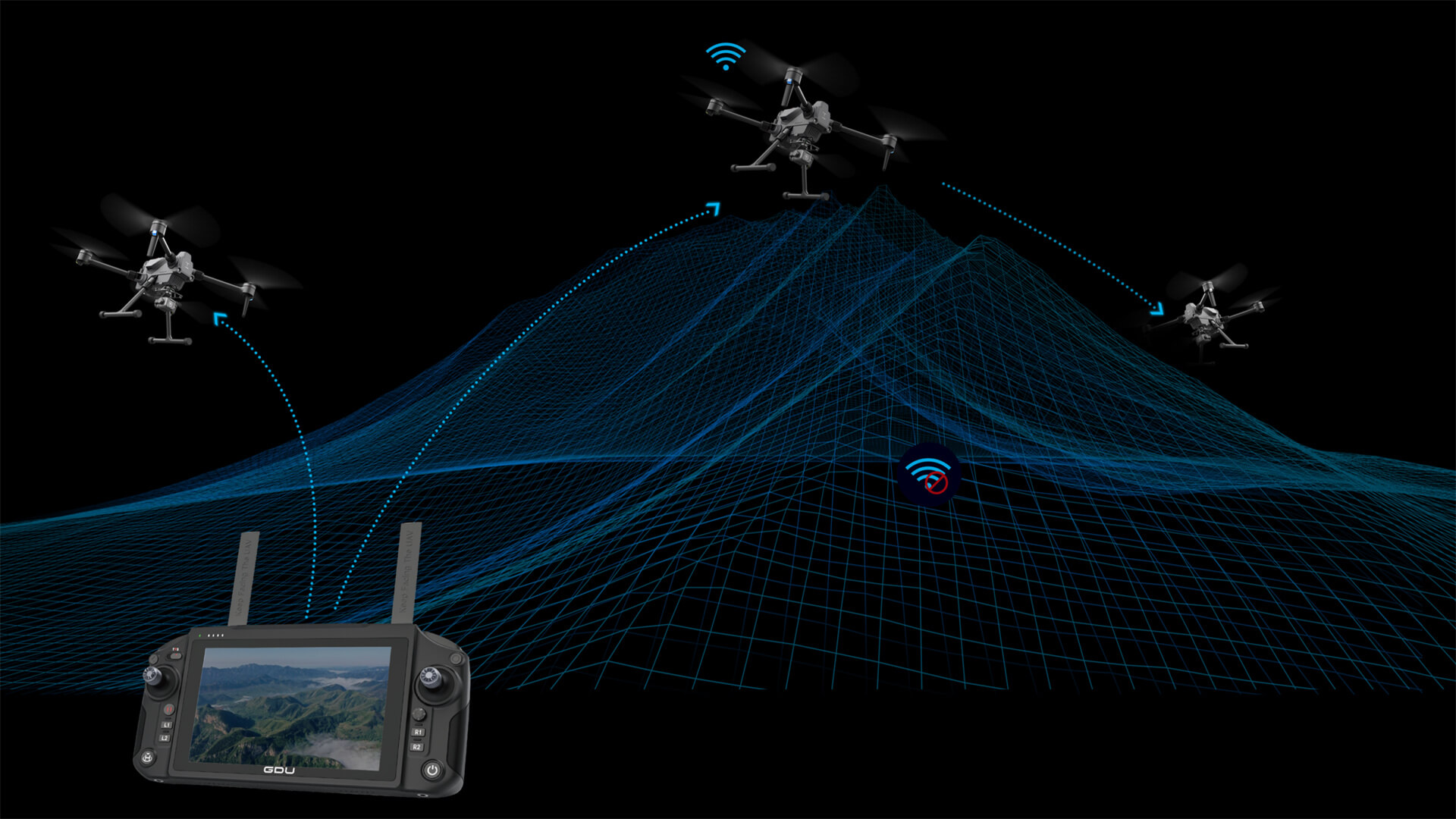

With self-organizing mesh network technology, the K03 ensures stable real-time data transmission and control even in off-grid environments.
The autonomous docking system enables continuous drone operations with fast charging, significantly extending flight time and expanding coverage for large-scale inspections.

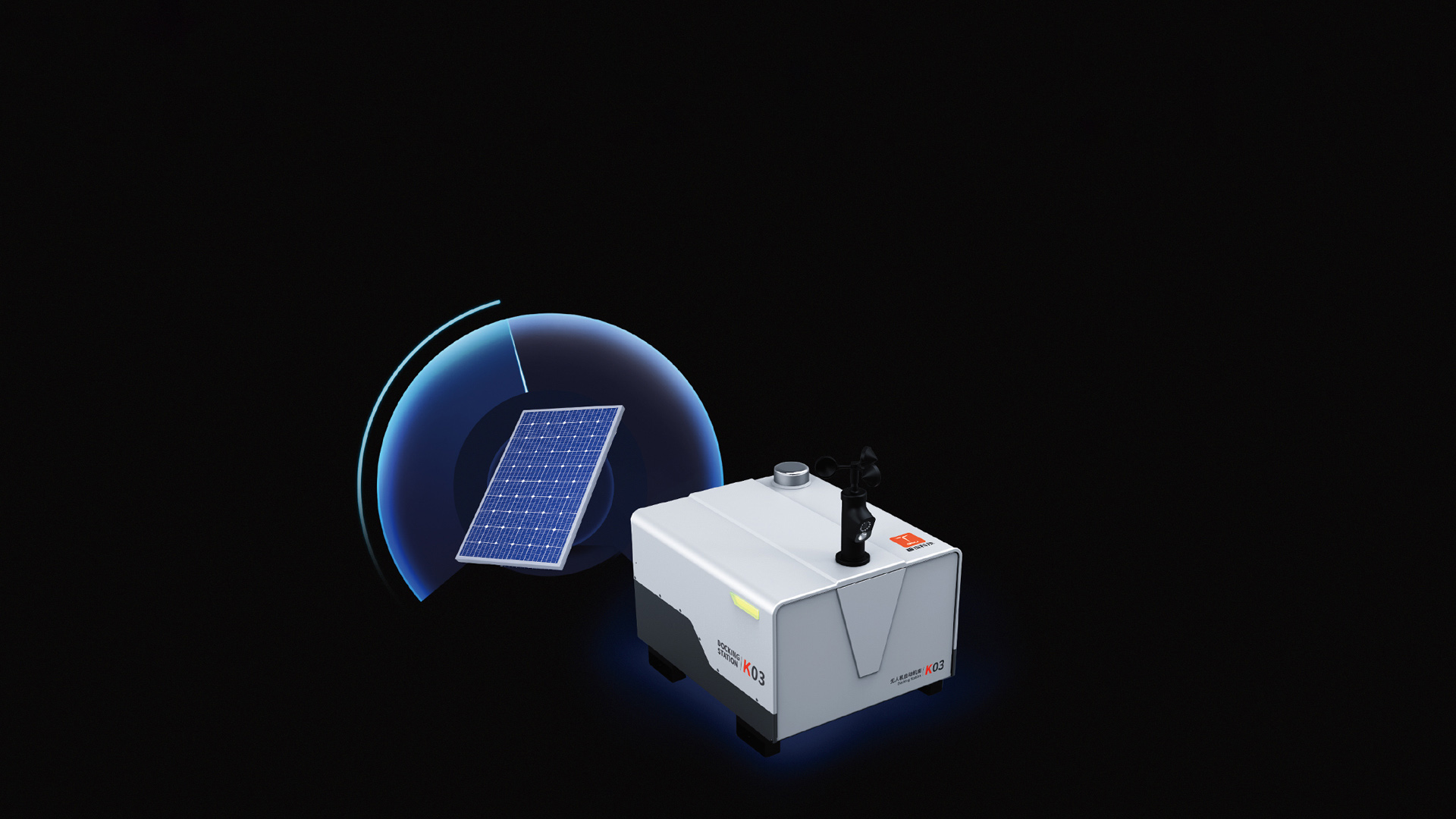

Featuring ultra-low standby power consumption (10W) and solar compatibility, it supports long-term deployment with minimal operational costs.

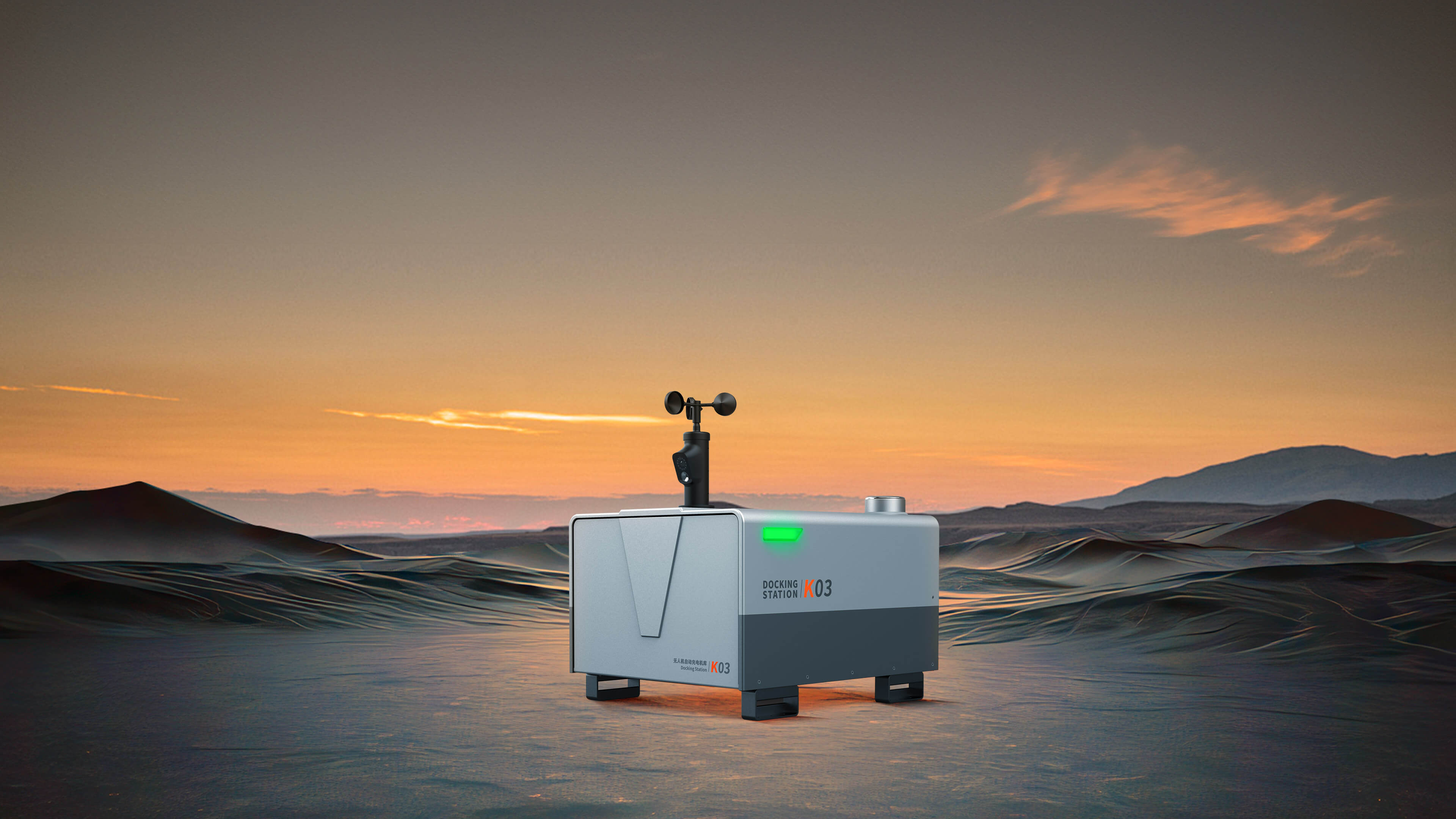

The built-in weather monitoring system provides real-time environmental data to optimize flight routes and enhance operational safety.
| Specification | Details |
|---|---|
| Dimensions (Closed) | 650 mm x 555 mm x 370 mm |
| Dimensions (Opened) | 1380 mm x 555 mm x 370 mm |
| Weight | 2400 mm x 2460 mm x 630 mm |
| Net Weight | ≤50 kg |
| Fill-in light | Yes |
| Power | 100 ~ 240 VAC, 50/60 Hz |
| Power consumption | Max≤1000 W |
| Deployment play | Ground, roof, standing tower |
| Emergency battery | ≥5 H |
| Charging time | ≤35 min(10%-90%) |
| Night precise landing | Yes |

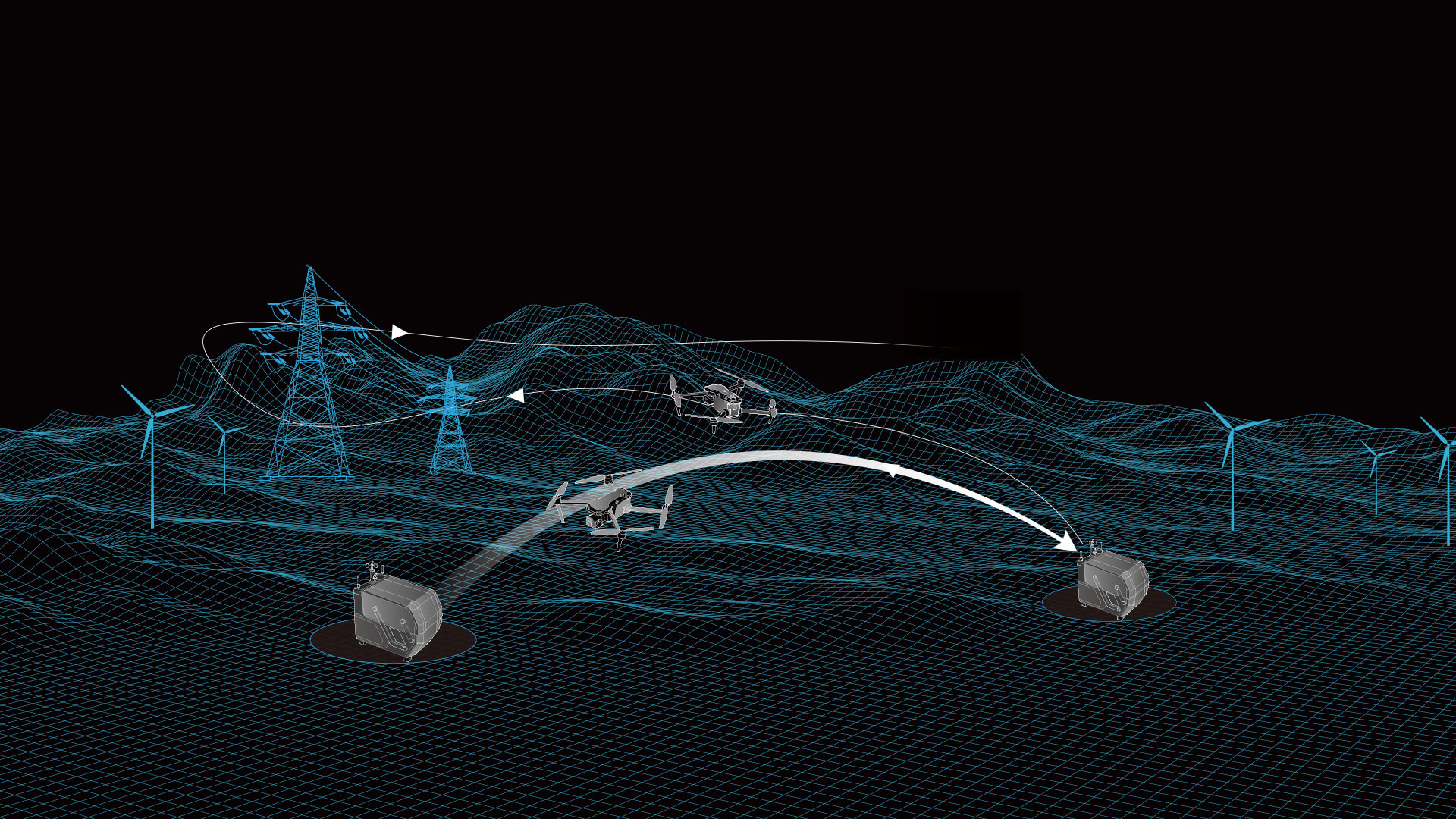

| Leapfrog inspection | Yes |
| Data transmission speed(UAV to Dock) | ≤200 Mbps |
| RTK base station | Yes |
| Max inspection range | 8000 m |
| Wind-resistance level | Inspection: 12 m/s | Precise landing: 8m/s |
| Edge computing module | Optional |
| Mesh module | Optional |
| Operating temperature range | -20℃ ~ 50℃ |
| Max operating altitude | 5000 m |
| Relative humidity of the external environment | ≤95% |
| Temperature control | TEC AC |
| Antifreezing | Cabin door heating supported |

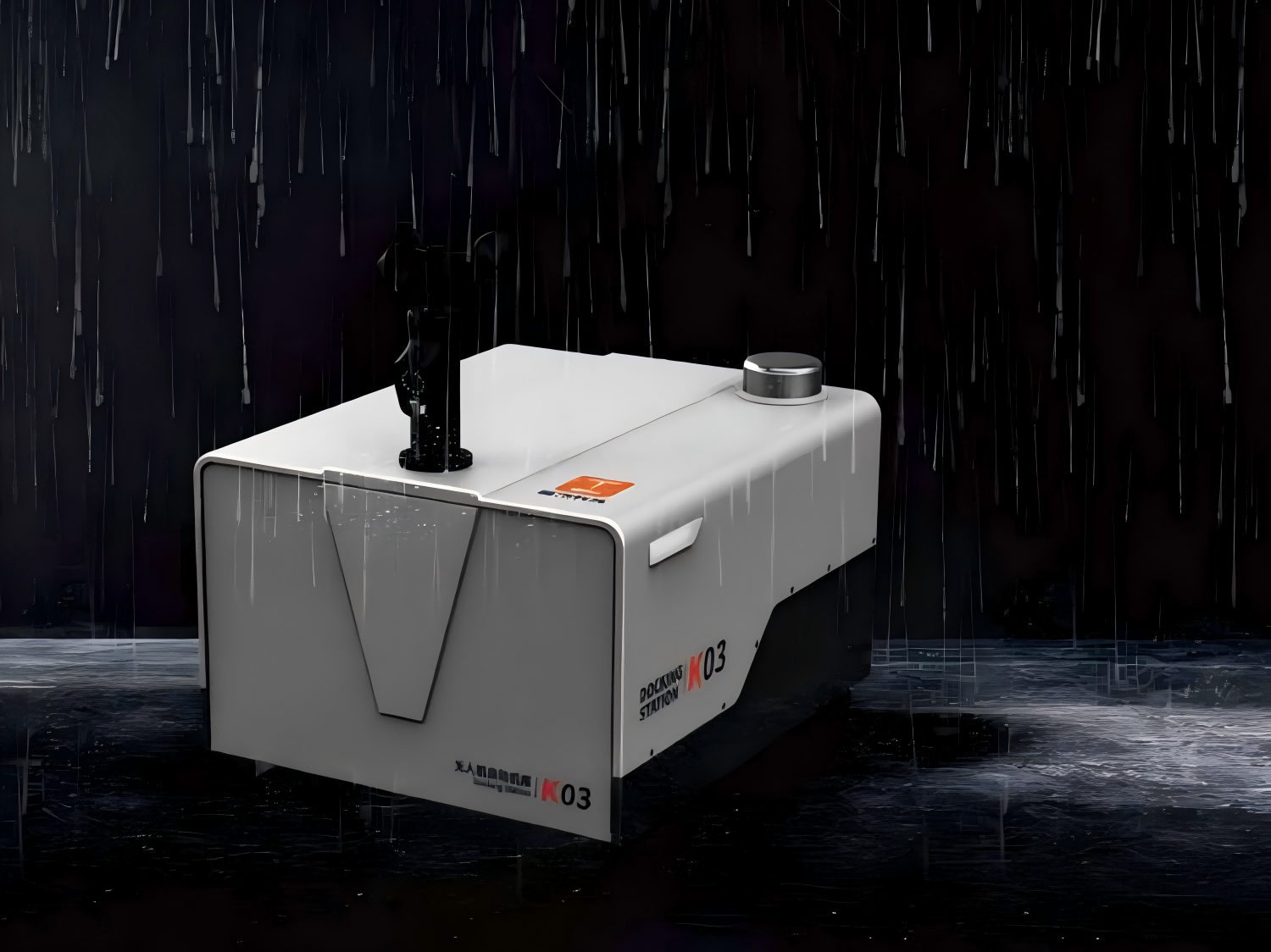

| Dustproof and waterproof class | IP55 |
| Lightning protection | Yes |
| Salt spray prevention | Yes |
| UAV in-place detection | Yes |
| Cabin exterior check-up | Temperature, humidity, wind speed, rainfall, light |
| Cabin interior check-up | Temperature, humidity, smoke, vibration, immersion |
| Camera | Inside and outside cameras |
| API | Yes |
| 4G communication | SIM card optional |
The K03 supports input power of 100 ~ 240 VAC at 50/60 Hz, with a maximum power consumption of ≤1000 W. It features a deep standby function that reduces standby power consumption to 10W, supporting long-term deployment under solar-powered states.
The autonomous docking system has a fast-charging function, capable of charging the UAV from 10% to 90% in 35 minutes or less, maximizing productivity by minimizing downtime.
The system supports a maximum inspection range of up to 8,000 meters. For wind resistance, it supports up to 12 m/s during inspection operations and up to 8 m/s during precise landing missions.
The built-in weather system performs comprehensive check-ups. The cabin exterior checks cover temperature, humidity, wind speed, rainfall, and light. The cabin interior checks monitor temperature, humidity, smoke, vibration, and water immersion.
Yes. With self-organizing mesh network technology, it ensures stable data transmission and control in off-grid and network-free areas. It has an operating temperature range of -20℃ to 50℃, IP55 dustproof/waterproof class, lightning protection, cabin door heating, and salt spray prevention.
The dock can be deployed on the ground, roofs, or standing towers. It supports network relay communication, with optional 4G SIM card communication, optional edge computing modules, and optional mesh modules.
