Features a tool-free quick-disassembly design, allowing single-person assembly in just 3 minutes for instant mission readiness.
Enables fully autonomous takeoff and landing with superior terrain adaptability, minimizing manual intervention for efficient missions.
Twin-boom platform delivers stable flight under heavy loads, with Level 7 wind resistance and IP54 protection for rescue, patrol, and inspections.
Supports up to 55kg payload with 240–420 minute flight times and ≥600km range (25kg load), ideal for long-haul operations.
Offers up to 420 minutes of flight time and a 55kg payload, ideal for demanding, long-duration missions.
Enhances efficiency by 8x for 100km power line inspections, detecting 3 abnormal hotspots with precision.
Features a tool-free, quick-disassembly design, enabling single-person assembly in just 3 minutes for swift mission readiness.
Features a detachable payload design, enabling rapid swaps for single, dual, or triple-sensor pods to meet diverse mission needs.
Features fully autonomous takeoff/landing with quad-rotor and engine-powered flight, offering strong terrain adaptability and high maneuverability.
| Parameter | Specification Detail |
|---|---|
| Type | Hybrid-wing VTOL |
| Material | Carbon fiber + glass fiber |
| Case Dimensions | 3380×1000×1070 mm (with universal wheels) |
| Unfolded Dimensions (with blades) | Wingspan 6660 mm, Length 3856 mm, Height 1260 mm |
| Body Weight | 100.5 kg (excluding battery and payload) |
| Empty Weight | 137 kg (with battery and 12L fuel, no payload) |
| Full Fuel Weight | 162 kg (with battery, full fuel, no payload) |
| Max Takeoff Weight | 200 kg |
| Max Payload | 55 kg (with 23L fuel) |
| Endurance |
• 420 min (no payload) • 380 min (10 kg payload) • 320 min (25 kg payload) • 240 min (55 kg payload) |
| Max Wind Resistance | Level 7 (fixed-wing mode) |
| Max Takeoff Altitude | 5000 m |
| Cruise Speed | 35 m/s |
| Max Flight Speed | 42 m/s |
| Max Ascent Speed | 5 m/s |
| Max Descent Speed | 3 m/s |
| Image Transmission Frequency | 1.4 GHz–1.7 GHz |
| Image Transmission Encryption | AES128 |
| Image Transmission Range | 80 km |
| Battery | 6000 mAh × 8 |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | 10%–90% (non-condensing) |
| Protection Rating | IP54 (light rain resistant) |
| Electromagnetic Interference | 100 A/m (power frequency magnetic field) |

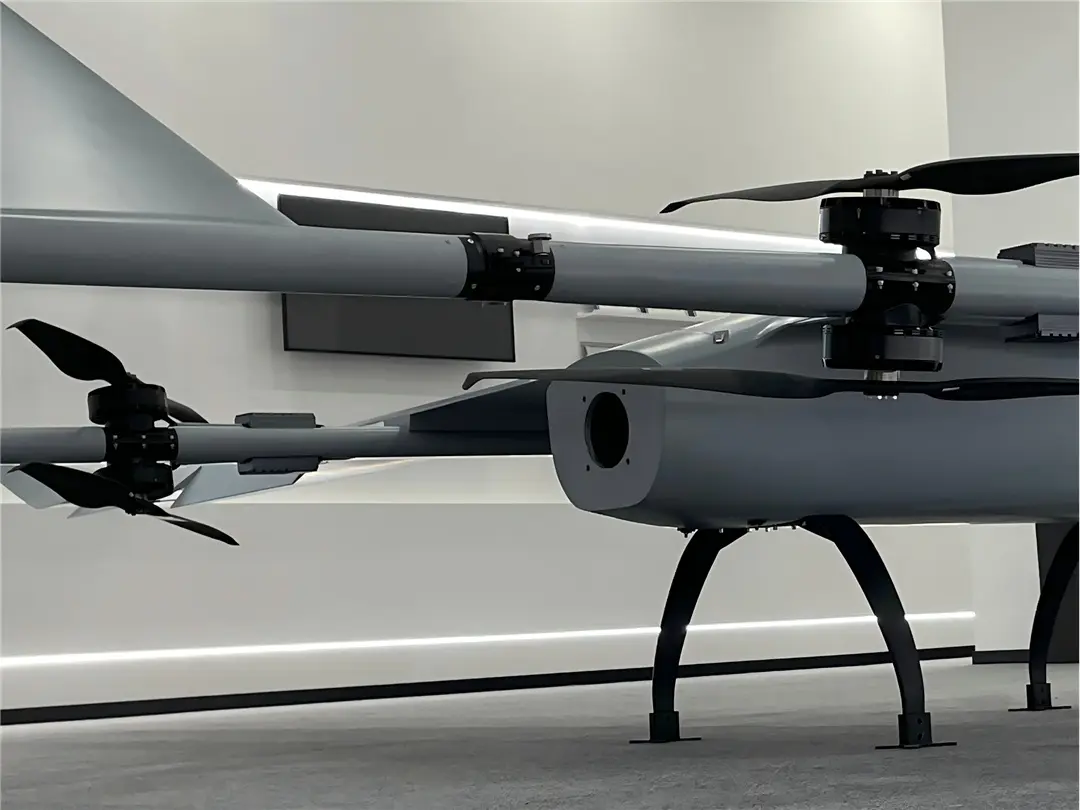

The M12 features a tool-free, quick-disassembly design that allows a single operator to complete assembly and achieve mission readiness in just 3 minutes.
The drone supports a payload capacity of up to 55 kg. Depending on the load configuration, flight times range from 240 minutes (at 55 kg max payload) up to 420 minutes (with no payload).
It features a rugged design with Level 7 wind resistance in fixed-wing mode and holds an IP54 protection rating, making it light rain resistant and operational in temperatures from -20°C to 60°C.
Yes, it features a detachable payload design that allows rapid swaps for single, dual, or triple-sensor pods to suit a variety of mission requirements.
The M12 operates at a cruise speed of 35 m/s, with a maximum flight speed of 42 m/s. It has a range of over 600 km (with a 25 kg load) and features an image transmission range of up to 80 km.
Constructed from high-durability carbon fiber and glass fiber, it has an unfolded wingspan of 6660 mm, body length of 3856 mm, and height of 1260 mm.
