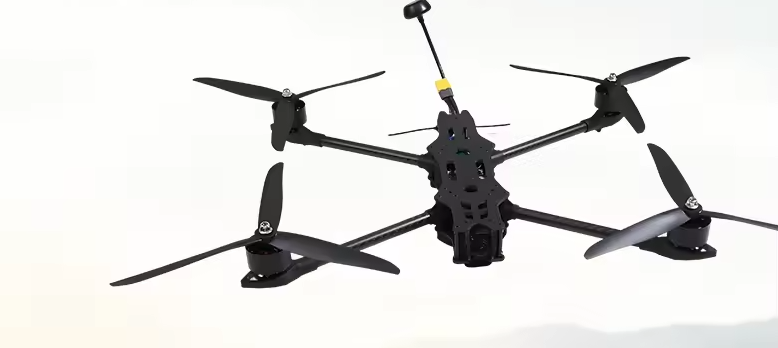

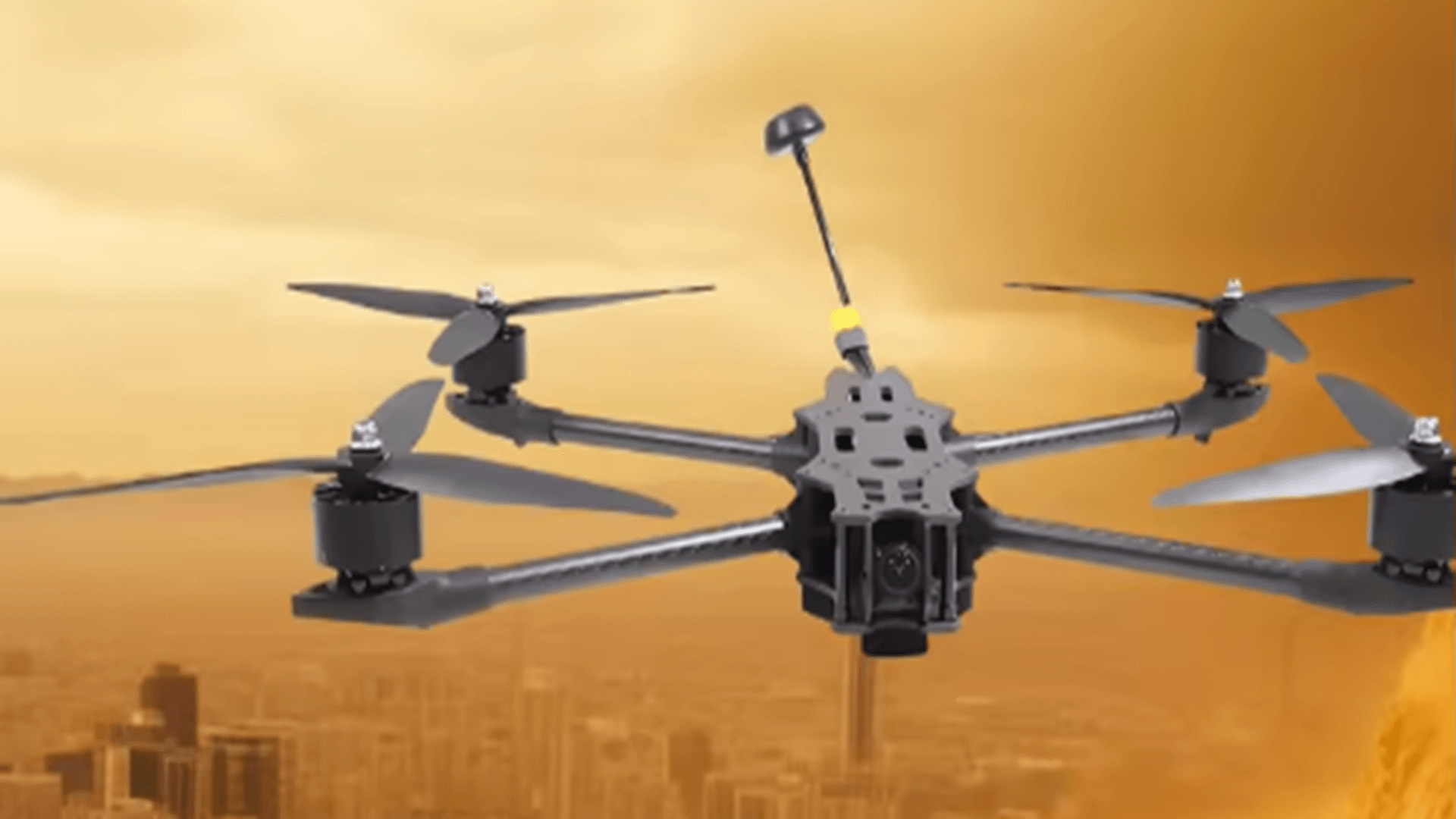

With the ability to accommodate large-capacity batteries, 10-inch FPV drones offer significantly longer flight times and greater range, which is critical for complex filming shots and inspection missions.
The 10-inch frame provides the perfect platform to carry heavy professional payloads like cinema cameras while maintaining responsive and stable flight characteristics.
Designed to lift 3kg+ payloads, the 10-inch class is the standard for integrating high-quality cameras and specialized equipment necessary for commercial and industrial applications.
The larger airframe and propellers provide greater inertia and stability, allowing the drone to perform reliably in windy conditions where smaller drones would struggle.
Unmanned aerial vehicle hoisting adhesive hook, let advertisement reach new height.
Put your brand image and creative information on the cloud.
While marketing focuses on speed, we engineer reliability for critical missions by perfecting the synergy between every component in the flight system.
Our vertically integrated supply network ensures scalable and timely material sourcing, enabling agile production to meet high-volume and custom project demands.
From concept to delivery, we offer deep customization and rapid turnaround, supported by flexible manufacturing systems that adapt to diverse client specifications and timelines.

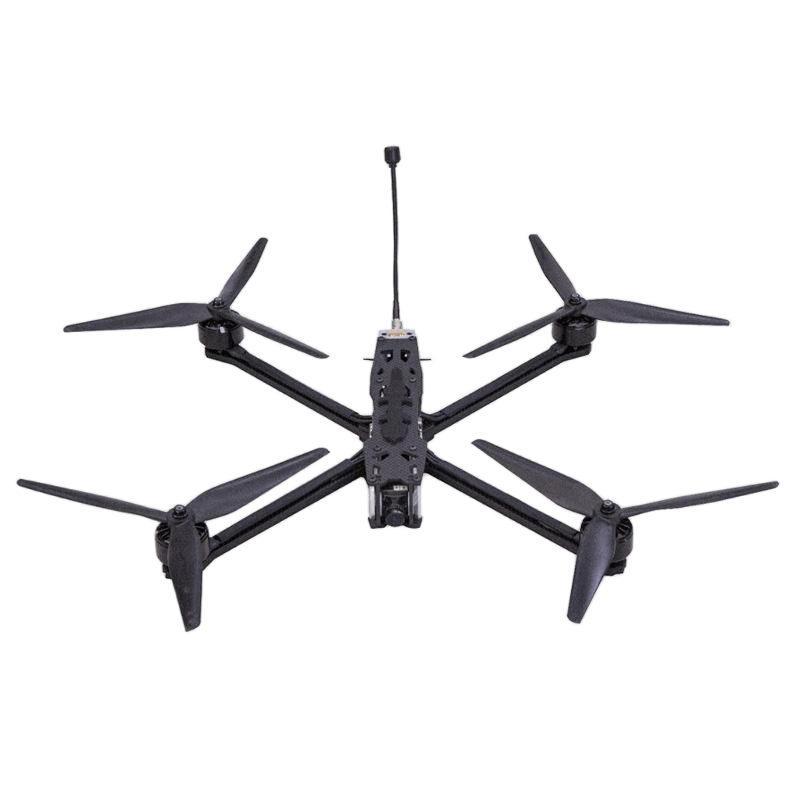

Designed to deliver precise maneuvering, low-latency response, and stable control during aggressive FPV flight.
| Specification | Details |
| Control Method | First-Person View (FPV) operation, agile and stable flight performance |
| Payload Capacity | 3.0–3.5 kg |
| Maximum Flight Speed | Up to 150 km/h |
| Maximum Takeoff Altitude | 5 km |
| Maximum Flight Range | 5–10 km |

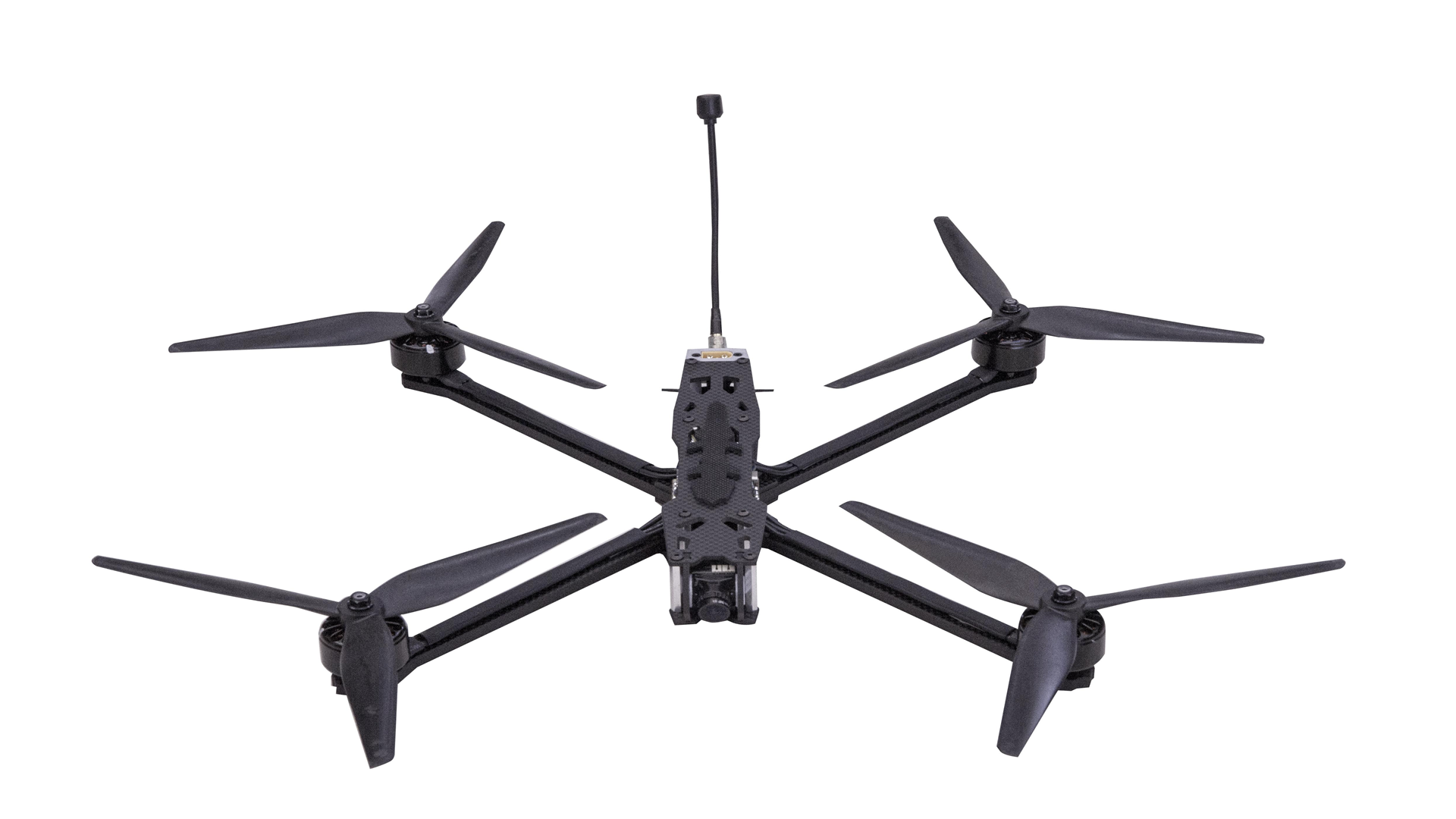

| QV-10 Series Quadcopter Frame Specs | |
| Material | T300 carbon fiber |
| Frame size | L 420 mm × W 420 mm × H 60 mm |
| Wheelbase | 415 mm |
| Propellers | 1050 tri-blade high-strength fiberglass propellers |
| Main Motors | 3115–900KV brushless motors |
| Flight Controller | F405 V3 with ICM42688P IMU |
| ESC Module | 4-in-1 60A ESC, AM32 firmware, 6S compatible, Max 65A |
| Camera Module | HDR 150 dB, high-definition wide dynamic range |
| Video Transmission Module | 5.8 GHz 2.5 W long-range video transmitter |
| Video Antenna | 5.8 GHz high-gain array antenna |
| Receiver Module | ELRS receiver, 915 MHz band |
| Battery | High-discharge LiPo battery, 6S 8000 mAh, XT60 connector |
1. What is the payload capacity of this 10-inch FPV drone?
This 10-inch class FPV drone is designed to carry a payload capacity of 3.0 to 3.5 kg, making it the industry standard for integrating professional cinema cameras and specialized commercial equipment.
2. What are the maximum speed and flight range specifications?
The drone can reach a maximum flight speed of up to 150 km/h with a maximum flight range between 5 to 10 km, ideal for long-distance, high-speed filming and critical inspection missions.
3. How does this drone perform under windy conditions?
Thanks to its larger T300 carbon fiber airframe and 1050 tri-blade high-strength propellers, this drone offers greater inertia and stability, allowing it to perform reliably in windy environments where smaller drones struggle.
4. What type of flight controller and ESC system does the quadcopter use?
It is equipped with an F405 V3 flight controller featuring the ICM42688P IMU and a 4-in-1 60A ESC with AM32 firmware, supporting 6S configurations with a maximum current of 65A for low-latency response and precise maneuvering.
5. What battery is recommended for optimal operation?
We recommend a high-discharge LiPo battery, specifically a 6S 8000 mAh pack with an XT60 connector, to provide the high current required for stable heavy-payload lifting and longer flight times.
6. Does the drone support customizable configurations?
Yes, our vertically integrated supply network and flexible manufacturing systems allow for deep customization, rapid turnaround, and adjustments to meet specific client specs and timeline requirements.
