Buy 18-inch Fpv Drone Manufacturers, Supplier

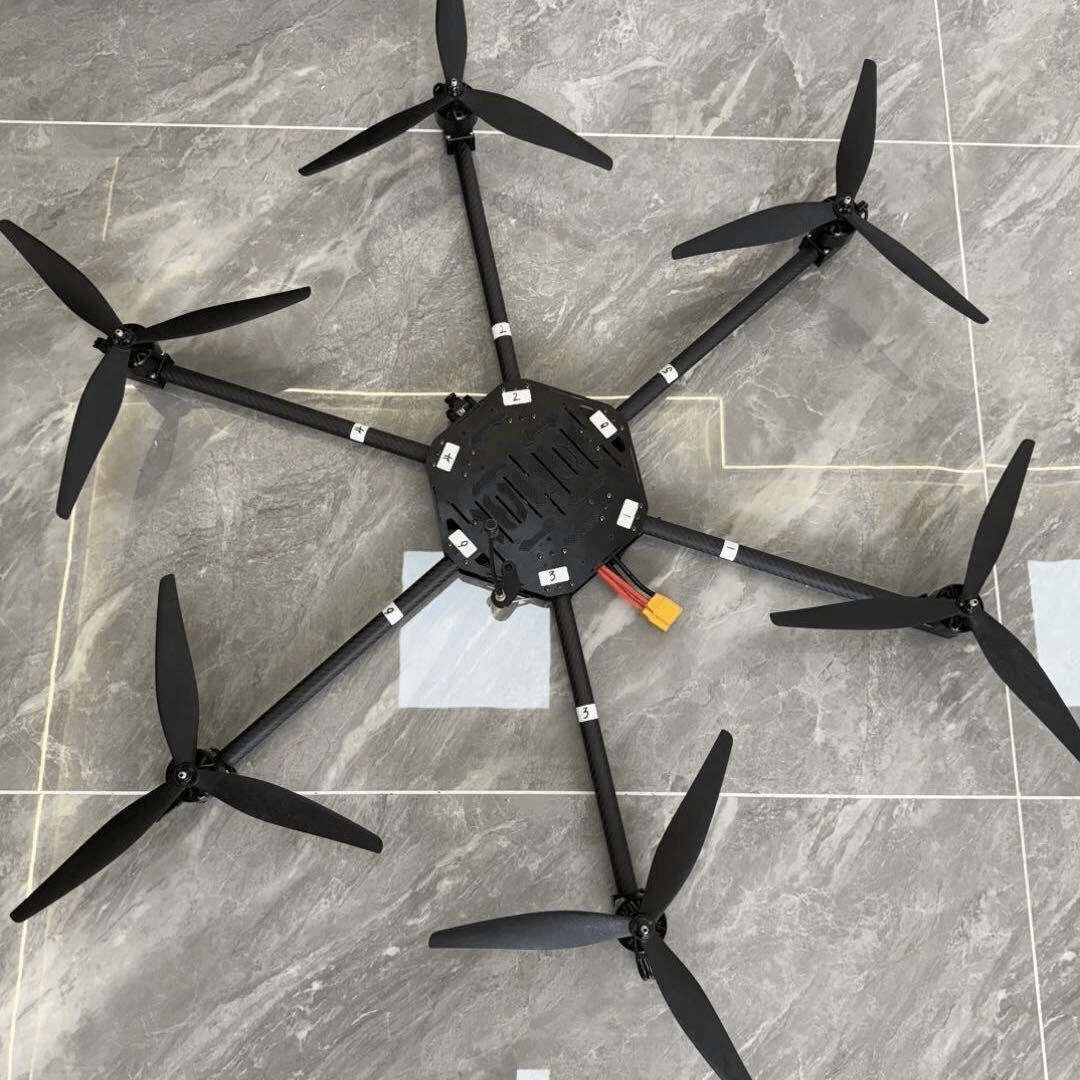

18-inch FPV heavy lift hexacopter drone with carbon fiber frame, 12kg payload capacity and 22.5kg max takeoff weight. Long-range FPV drone with 5.8G video transmission, 8S power system, high-efficiency 5215 motors, ideal for industrial, logistics and aerial transport missions.

Send Inquiry

Product Description

Extended Flight Time

Offers up to 60 minutes of no-load flight and 22 minutes at full 12kg payload, powered by high-capacity 8S 22000mAh batteries.

Heavy Duty Performance

Engineered to carry a 12kg rated load with a maximum takeoff weight of 22.5kg. Delivers up to 110km/h speed and 20km range.

Modular HD FPV System

Equipped with a 5.8G HD video system, low-latency FPV camera, and modular design supporting quick configuration.

Industrial Grade Build

Features a carbon-fiber frame, high-efficiency 5215 motors, 120A ESCs, and an STM32F405 flight controller for precise operation.

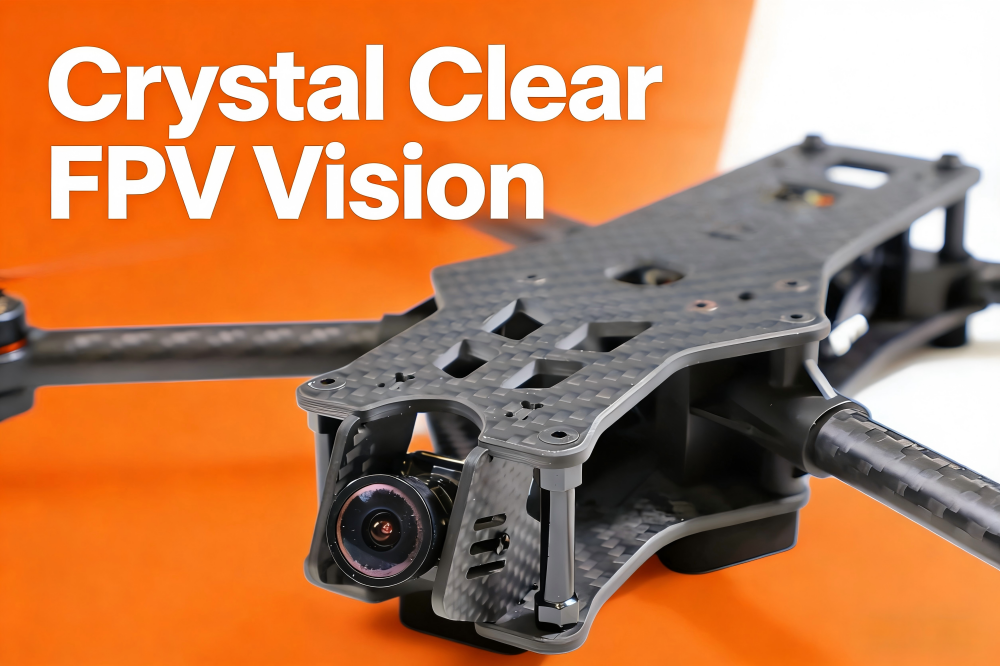

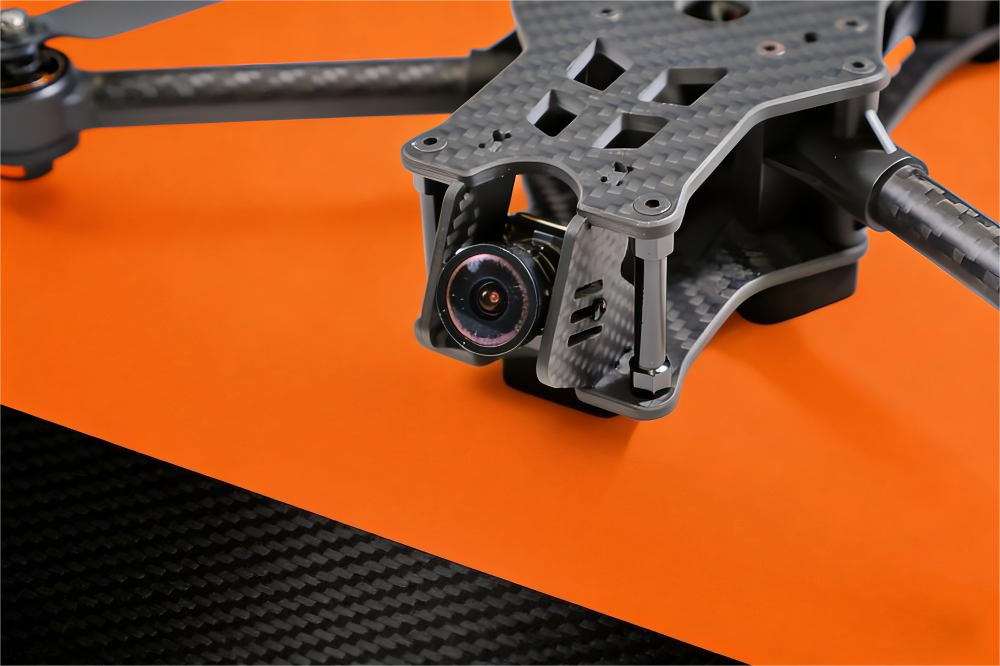

This advanced drone component is equipped with a high-clarity FPV camera, delivering sharp, real-time visual feedback to enhance precision and operational efficiency in professional aerial scenarios.

While marketing focuses on speed, we engineer reliability for critical missions by perfecting the synergy between every component in the flight system.

Integrated supply network and production

Our vertically integrated supply network ensures scalable and timely material sourcing, enabling agile production to meet high-volume and custom project demands.

From concept to delivery, we offer deep customization and rapid turnaround, supported by flexible manufacturing systems that adapt to diverse client specifications and timelines.

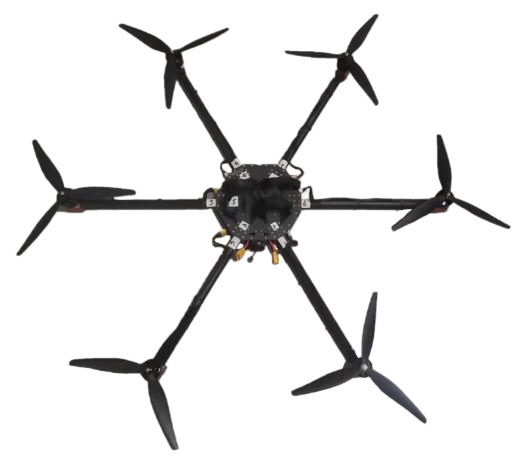

Precise. Responsive. Stable. — A drone built to master extreme maneuvers with unmatched control and low-latency performance.

Specification	Details
Product materials	Carbon fiber
Product dimensions (mm)	14501450120 mm
Color box size (mm)	630630200mm
N.W.（g）	6.8 kg
Product weight (single box /g)	8.8 kg
packing	Box
G.W.（kg）	8.8/6.8
Color	black
Product Functions & Features	• FPV first-person perspective operation • Flexible and stable flight performance • Maximum takeoff altitude of approximately 5,000 meters • Equipped with high-efficiency 5215 motor • Maximum speed of 110 km/h • Maximum flight distance of 20 km • Rated load capacity: 12 kg • Maximum takeoff weight: 22.5 kg • No-load endurance time: 60 minutes (with 28s 22000mAh batteries) • Endurance time at max takeoff weight: 22 minutes (with 28s 22000mAh*3 batteries)
Overall Parameters	• Frame: 18-inch hexacopter frame • Flight controller: BL F405 • ESC (Electronic Speed Controller): 8s-1A ESC • Video transmitter: 5.8g 2.5W video transmitter • Camera: 1800TVL low-latency FPV camera • Motor: 4219-330KV • Propeller: 1865 • Recommended battery: 8S 22000 with XT90 plug *2

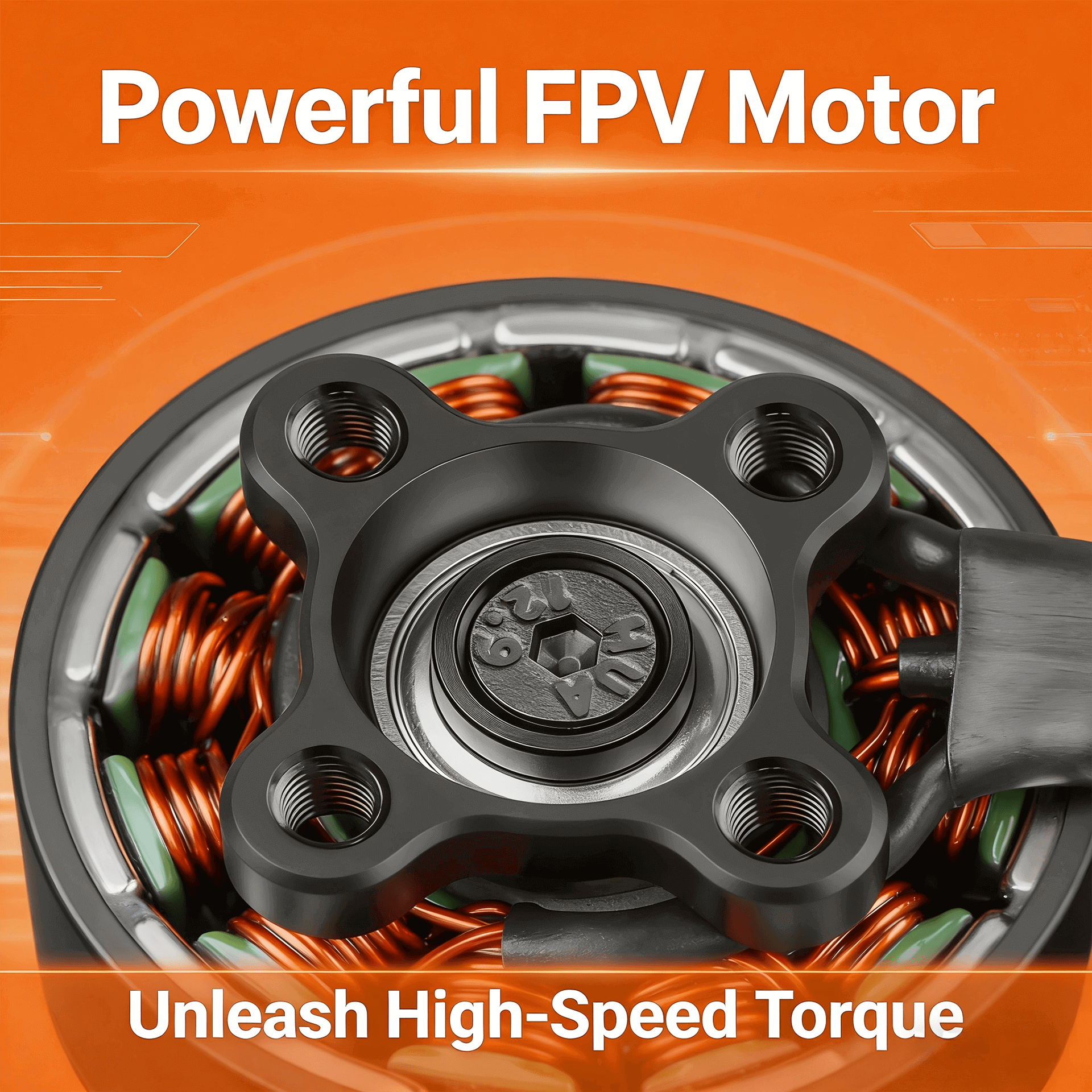

Motors	• Motor: 5215-350KV • Screw hole distance: 30*30 • Screw hole: M6
ESCs	• 120A • Continuous current: 120A • Peak current: 125A (8S) • Lithium battery: 8S • Firmware: AM32 • Maximum supported throttle signal: DShot300/601 digital throttle modes
FC	• BEC: 9V2A/5V3A/3.3V • MCU: STM32F405 • Gyroscope: MPU6000-ICM42688-P • OSD: AT7456E • Firmware: TCMM405 • Weight: 8g • Mounting holes: M330.530.6
Video Transmitter 5.8G 3W	• Frequency: 5.8G • Channels: 48CH • Input voltage: 7-26V • Output power: 25mw/1600mw/2000mw • Protocol: Smart Audio • Dimensions: M330.530.5 • Weight: 20g
ELRS915M Receiver	ELRS915M Receiver
Accessories	• 5.8G long-range antenna • 2040 battery straps 4 • Propellers 1508

Frequently Asked Questions

1. What is the maximum flight time of this drone?

This drone offers up to 60 minutes of no-load flight time. When carrying a full 12kg payload, it delivers up to 22 minutes of flight time powered by high-capacity 8S 22000mAh batteries.

2. What are the payload capacity and takeoff limits?

The platform is engineered to carry a rated payload of 12kg, with a maximum takeoff weight of 22.5kg, supporting demanding commercial and industrial missions.

3. What flight controller and motors power this drone?

It is powered by an STM32F405 flight controller, paired with high-efficiency 5215-350KV motors and robust 120A ESCs for stable, precise flight controls.

4. How far and how fast can it fly?

The drone is built for high performance, reaching a maximum speed of 110km/h and an impressive flight distance range of up to 20km.

5. What kind of FPV video system is included?

It features a 5.8G HD video transmission system (3W transmitter) and a low-latency 1800TVL FPV camera, providing operators with real-time, high-clarity visual feedback.

6. Can the drone design be customized for specific payloads?

Yes. The drone features a modular structure designed for quick configurations, allowing flexible customization to adapt to specific industrial applications and timelines.
