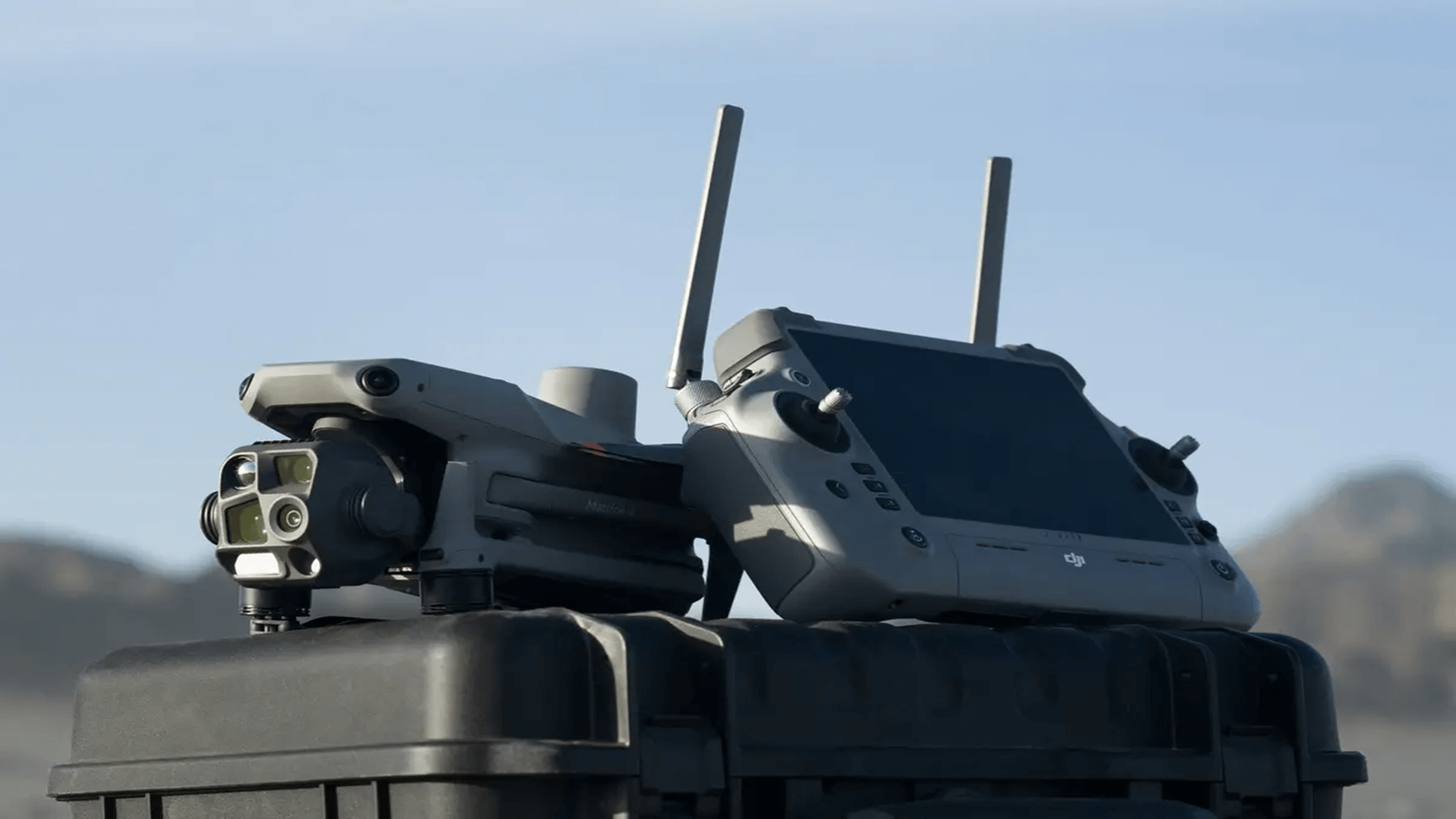

Wholesale DJI RC Plus 2 Industry Plus Supplier, Factory

Equipped with a new high-brightness screen, it can be clearly seen in sunlight. It supports IP54 protection and can operate in temperatures ranging from -20°C to 50°C. It adopts the O4 image transmission industry version and supports both SDR and 4G hybrid video transmission solutions.

Product Description

O4 Transmission

Its O4 Industry Edition transmission (with SDR/4G hybrid support) and high-gain antenna array ensure strong, smooth connectivity even in urban high-rises or mountainous areas.

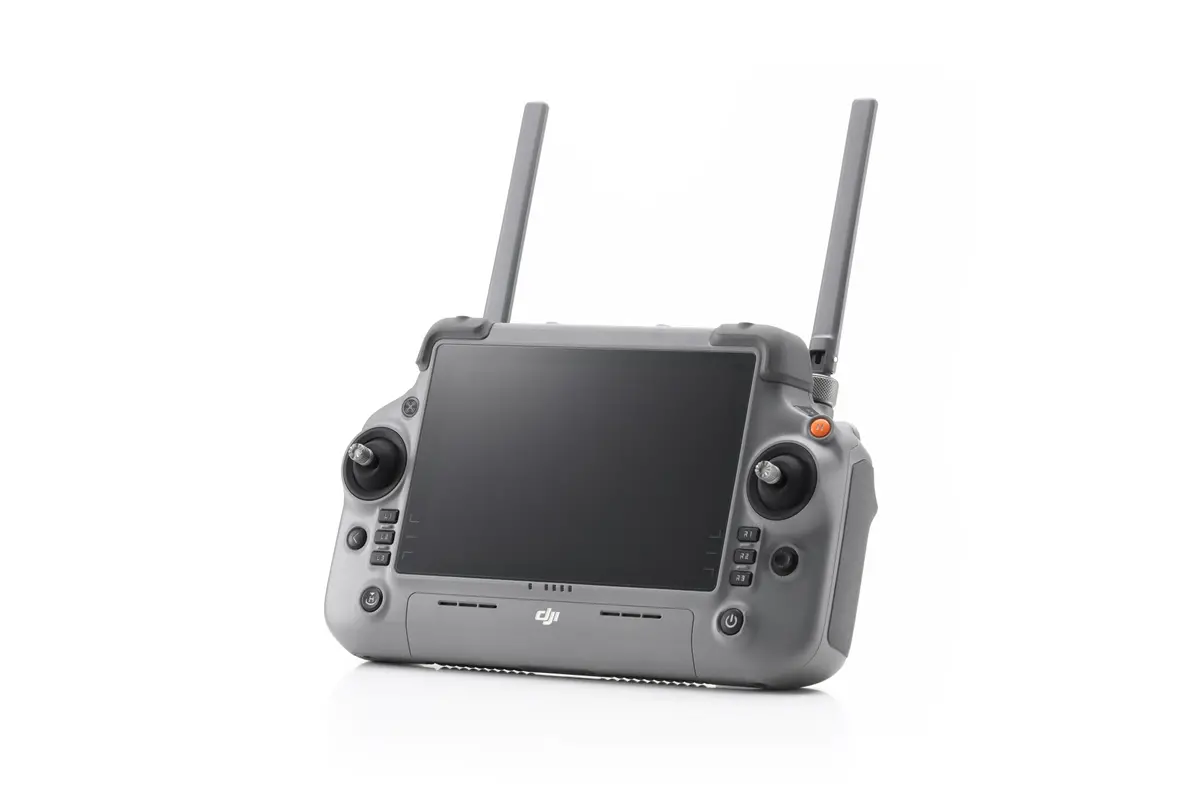

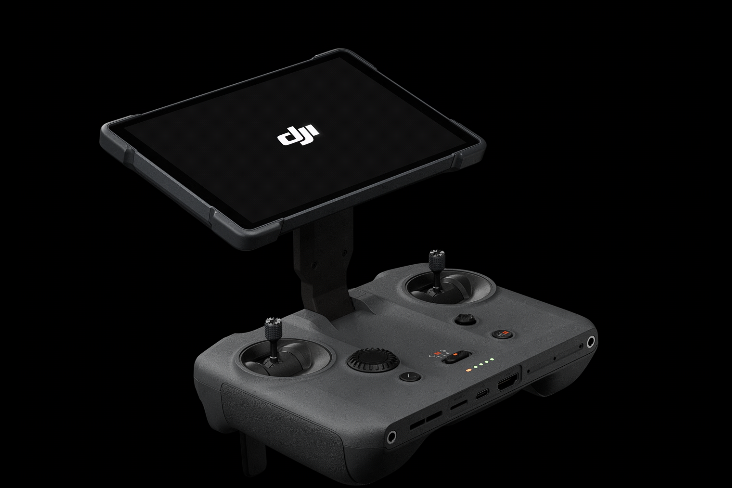

DJI RC Plus 2

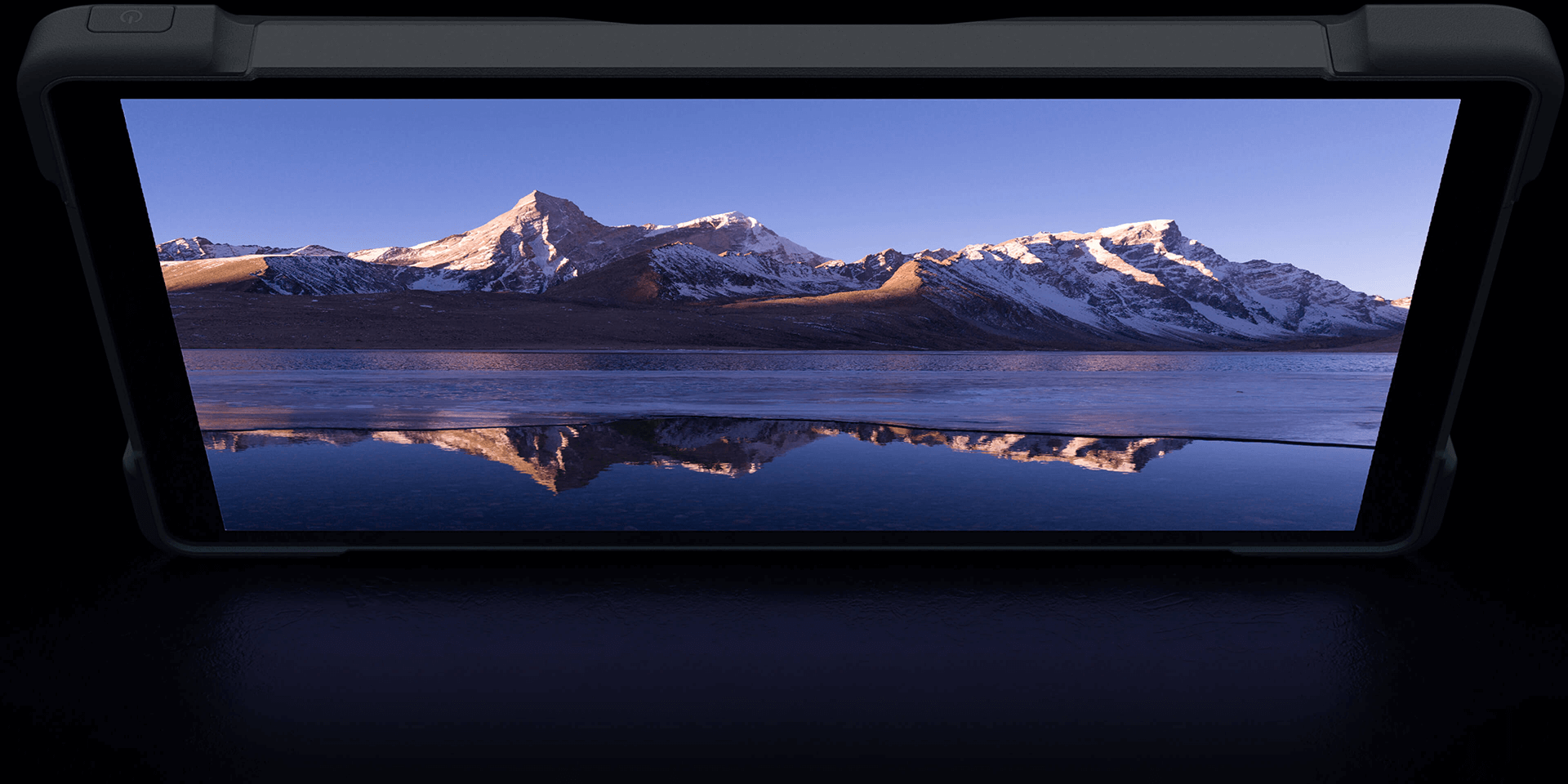

The DJI RC Plus 2 Industry Edition features a high-brightness screen (clear in sunlight) plus IP54 protection and wide temperature tolerance (-20°C to 50°C), making it reliable in harsh environments.

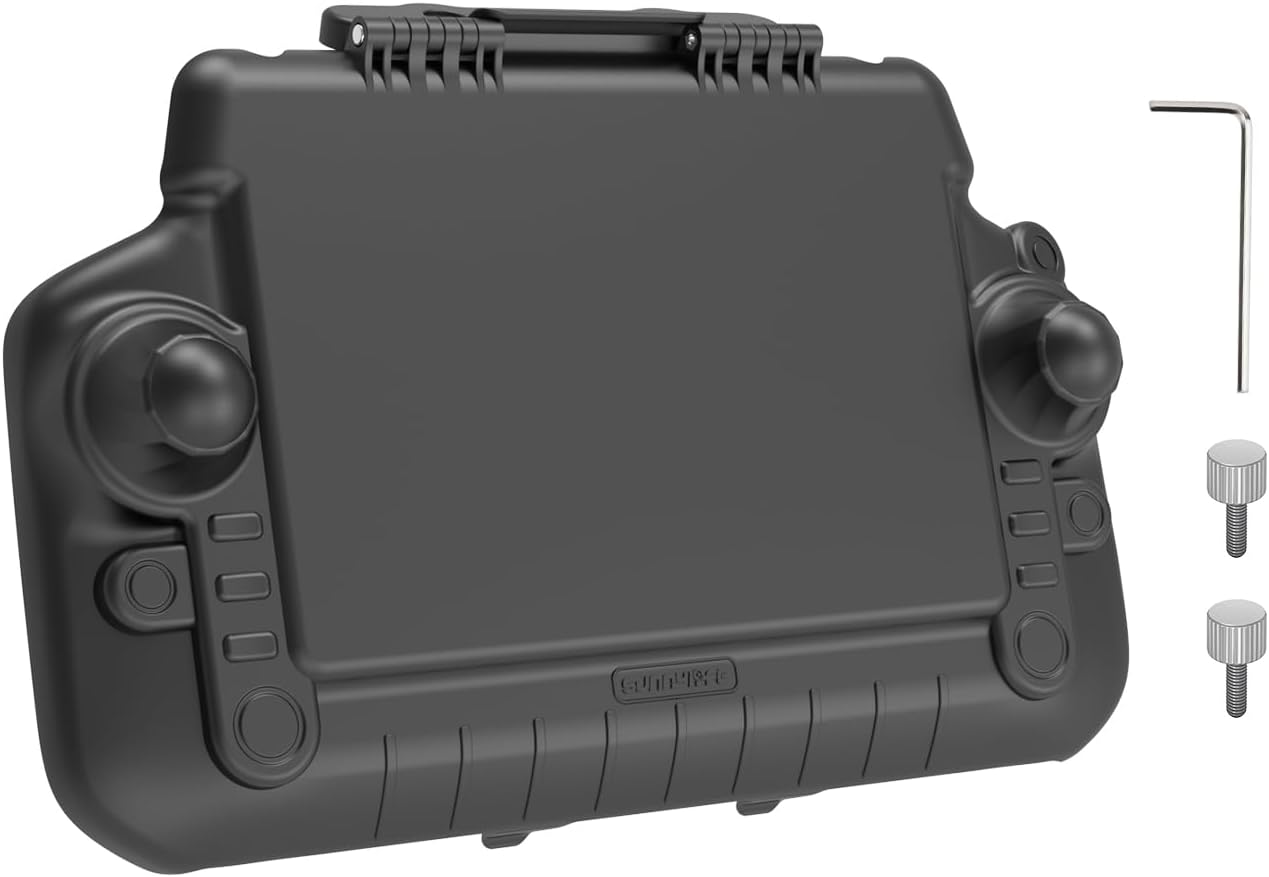

Joystick Lock & Storage

The accessory locks joysticks to prevent damage during transport, and its one-snap closure lets you store the remote (with sunshade) easily in bags or safety boxes—no repeated disassembly needed.

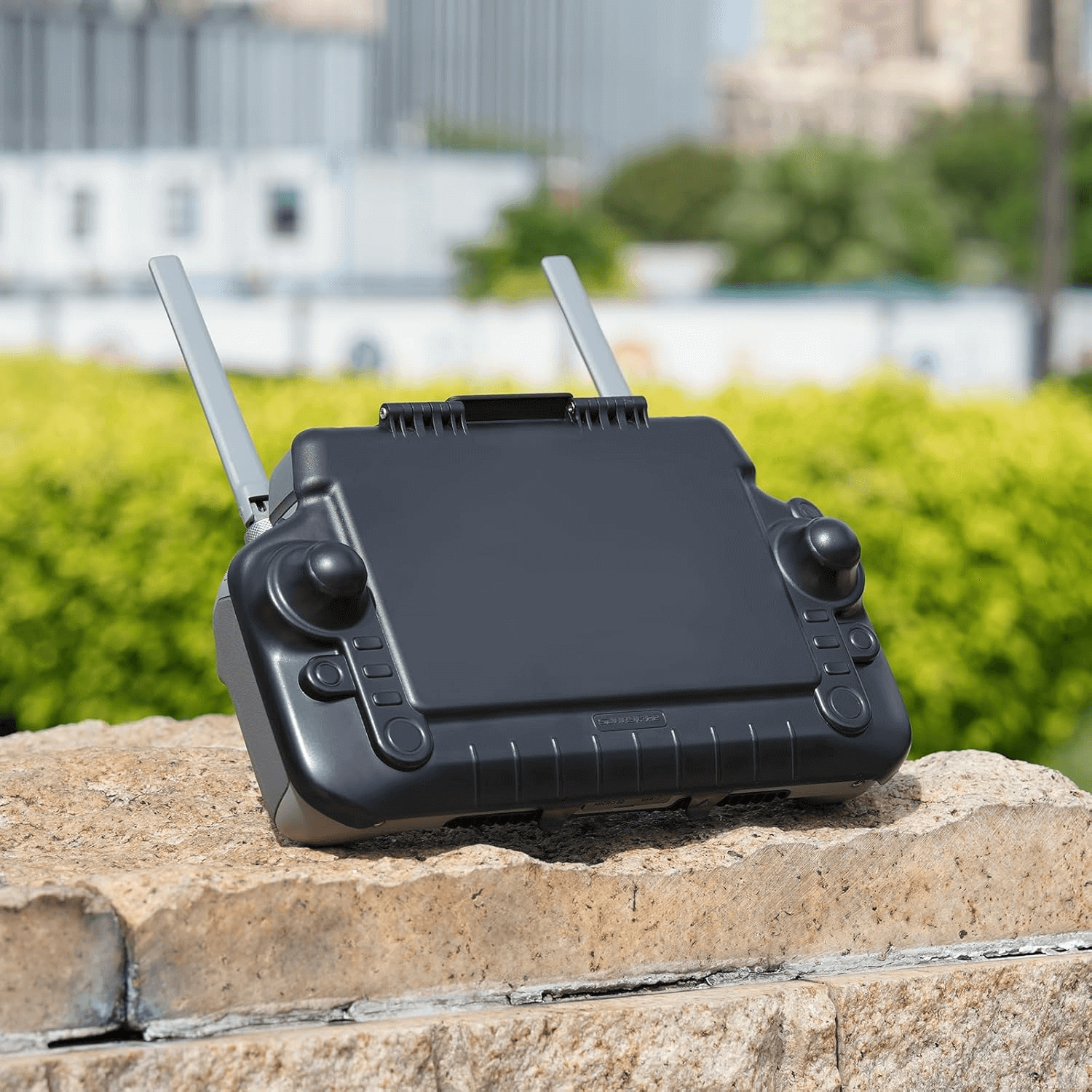

2-in-1 Design

The 2-in-1 accessory acts as both a protective cover (shields screen/joysticks from dust/scratches) and a sunshade (two-stage shading), fitting the RC Plus 2’s structure perfectly.

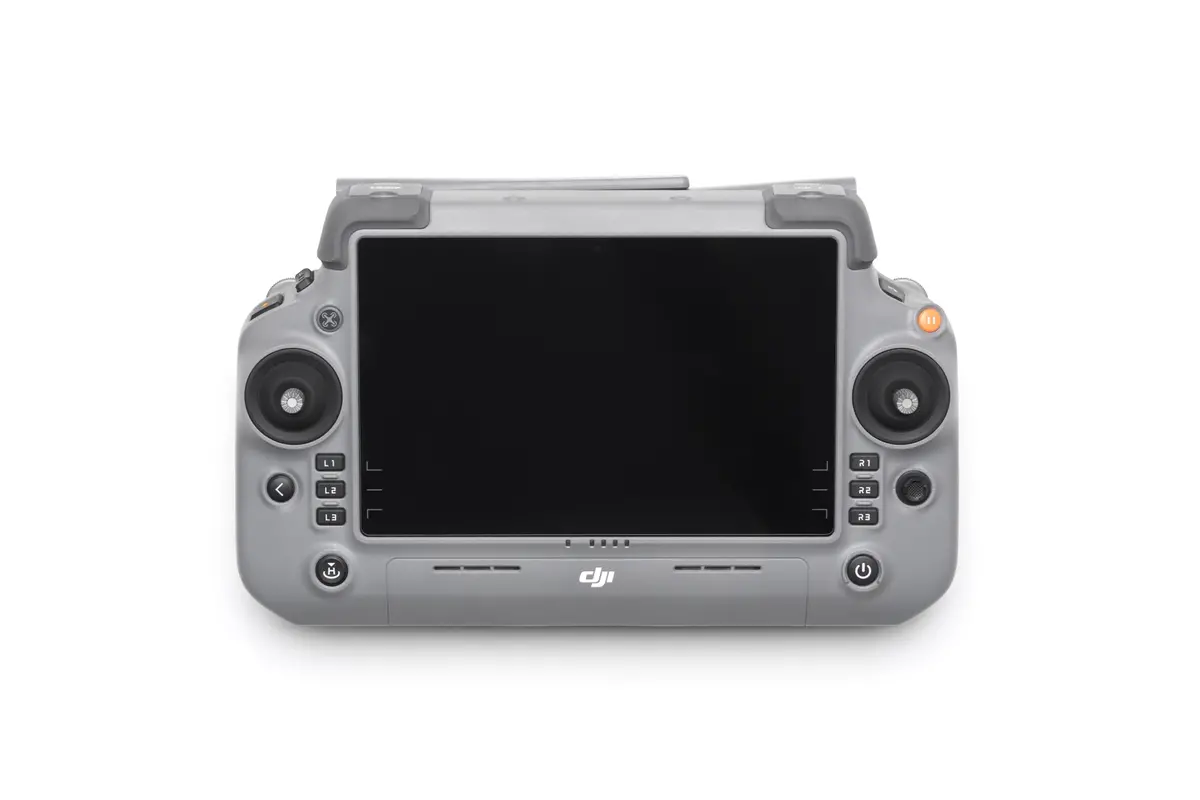

DJI RC Plus 2 Remote Controller Details

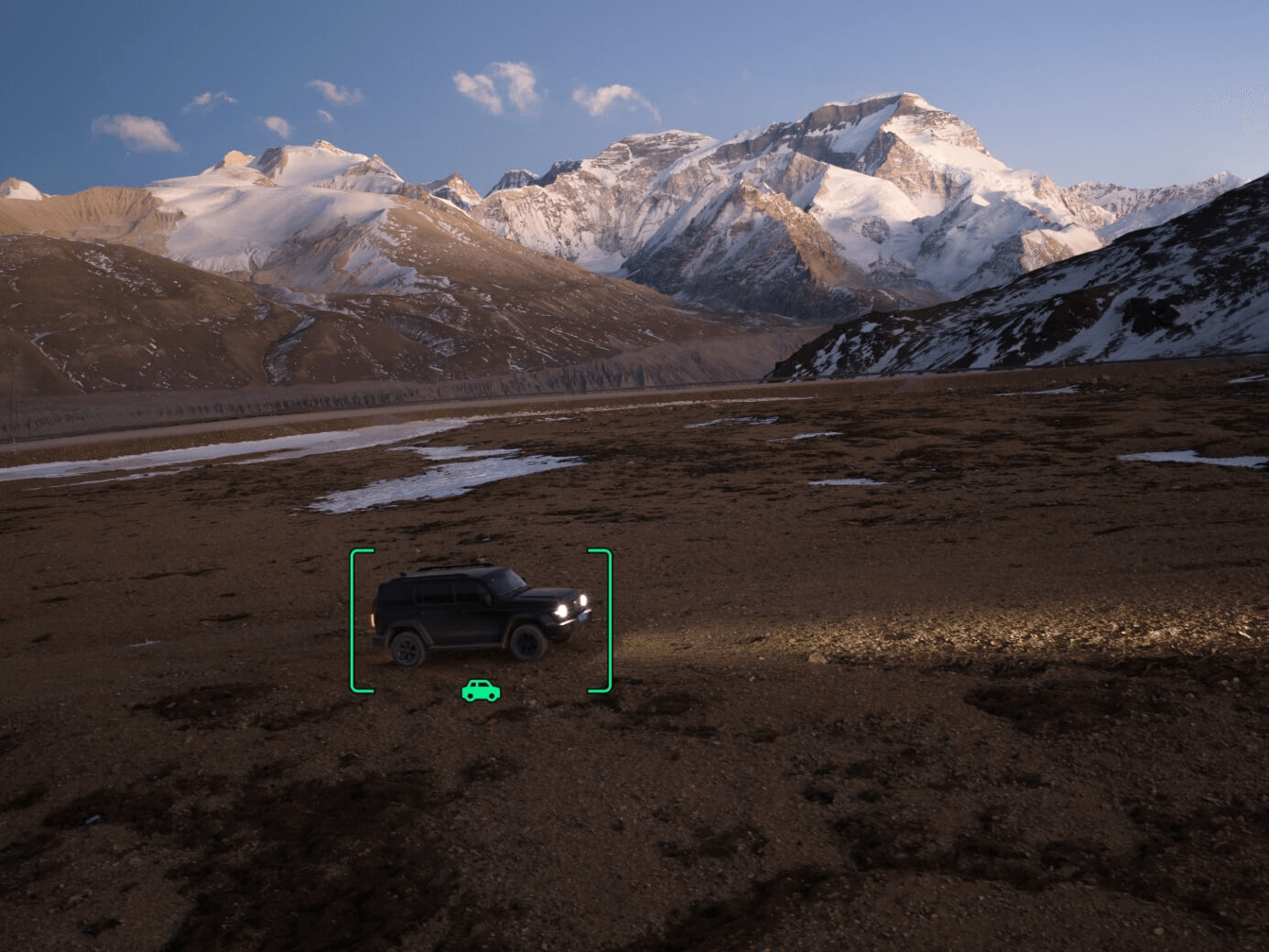

Mobile Return Point

When you sit in the car and control the drone, RC Pro 2 instantly refreshes the return point location, helping the Mavic 4 Pro return to the vicinity of the vehicle more safely and quickly.

Low-Power Sleep Mode

When the screen is closed, the RC Pro 2 automatically enters low-power sleep mode and can also wake up quickly when needed. When transitioning between different shooting scenes, there is no need to switch on and off frequently, further improving creative efficiency.

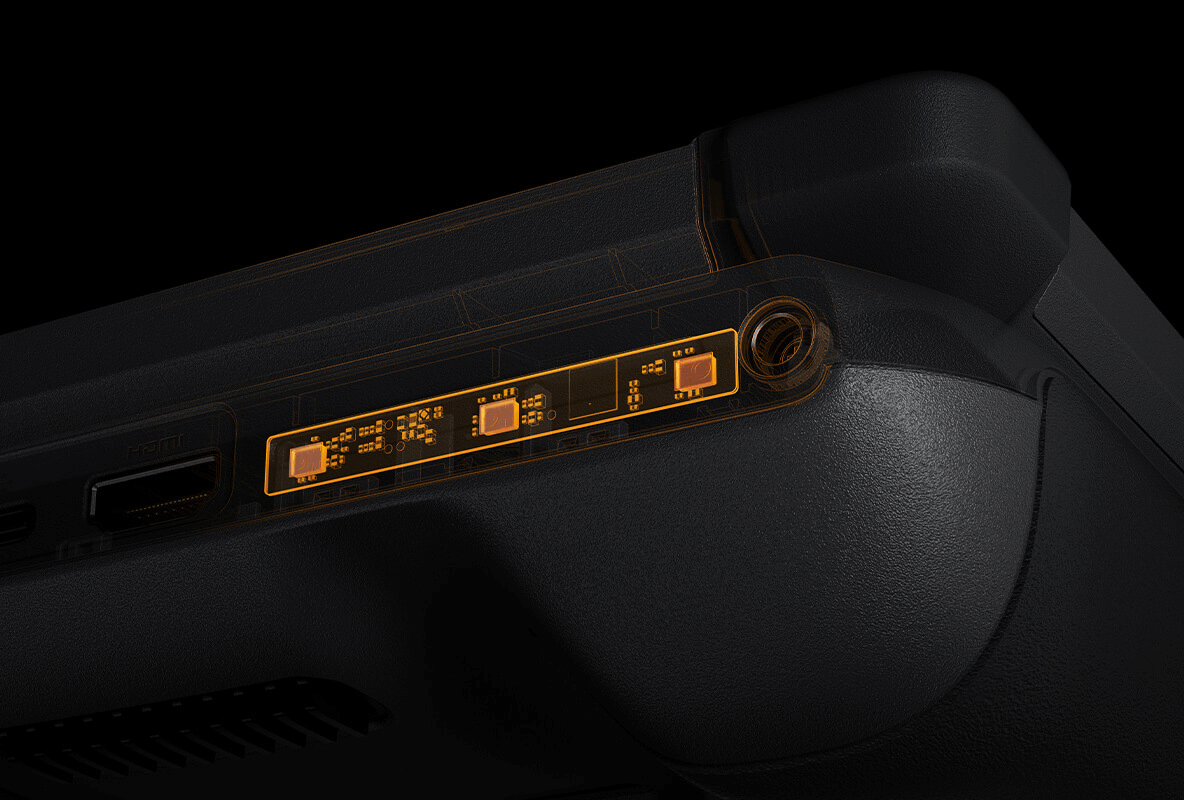

RC Pro 2 Control Screen Display
Audio & Mic Support

RC Pro 2 has a built-in microphone that can pick up audio during live broadcasts and supports direct connection to DJI Mic series microphones to achieve better sound pickup.

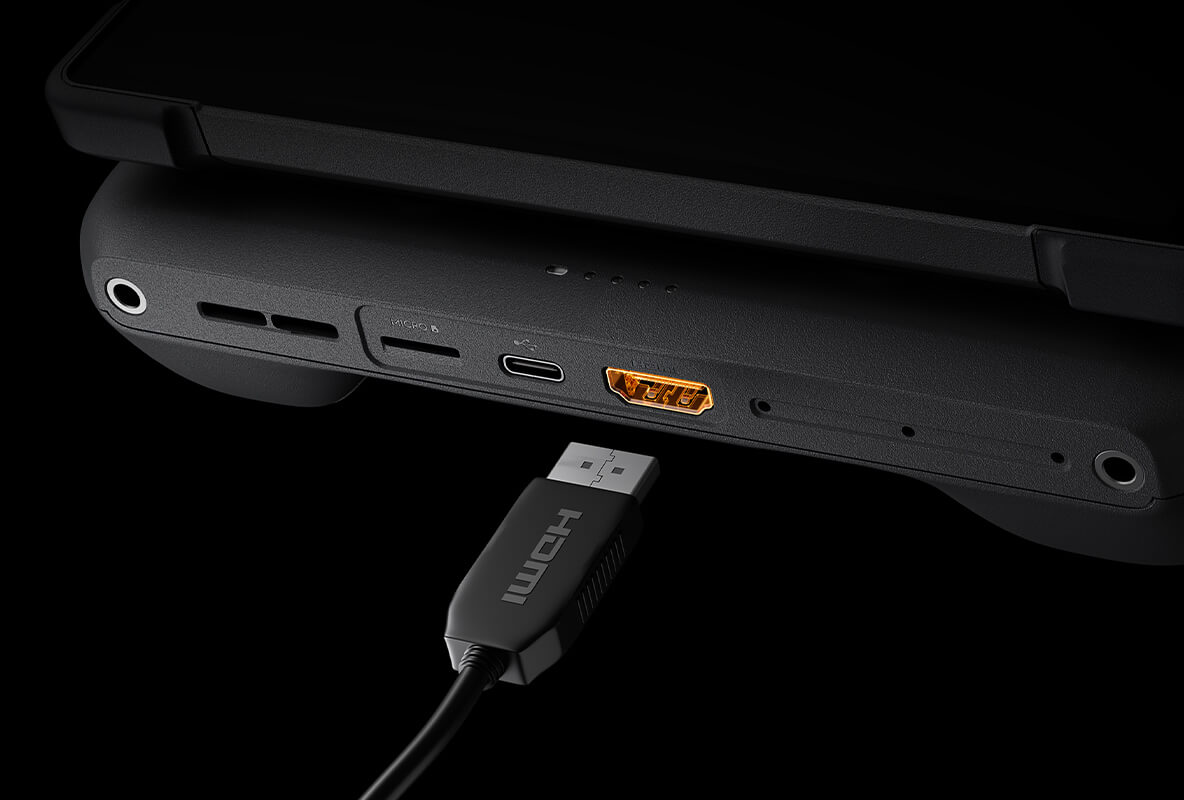

HDMI Casting

With the help of the HDMI port on the body, you can cast a pure live stream without an interface to the big screen for sharing.

HDMI Output and Port Connectivity
Flight Experience Simulator

The remote control has a built-in flight experience simulator, which can simulate the operation interface, dynamic objects, and even image transmission occlusion environment in a real flight environment, helping novices familiarize themselves with flight operations.

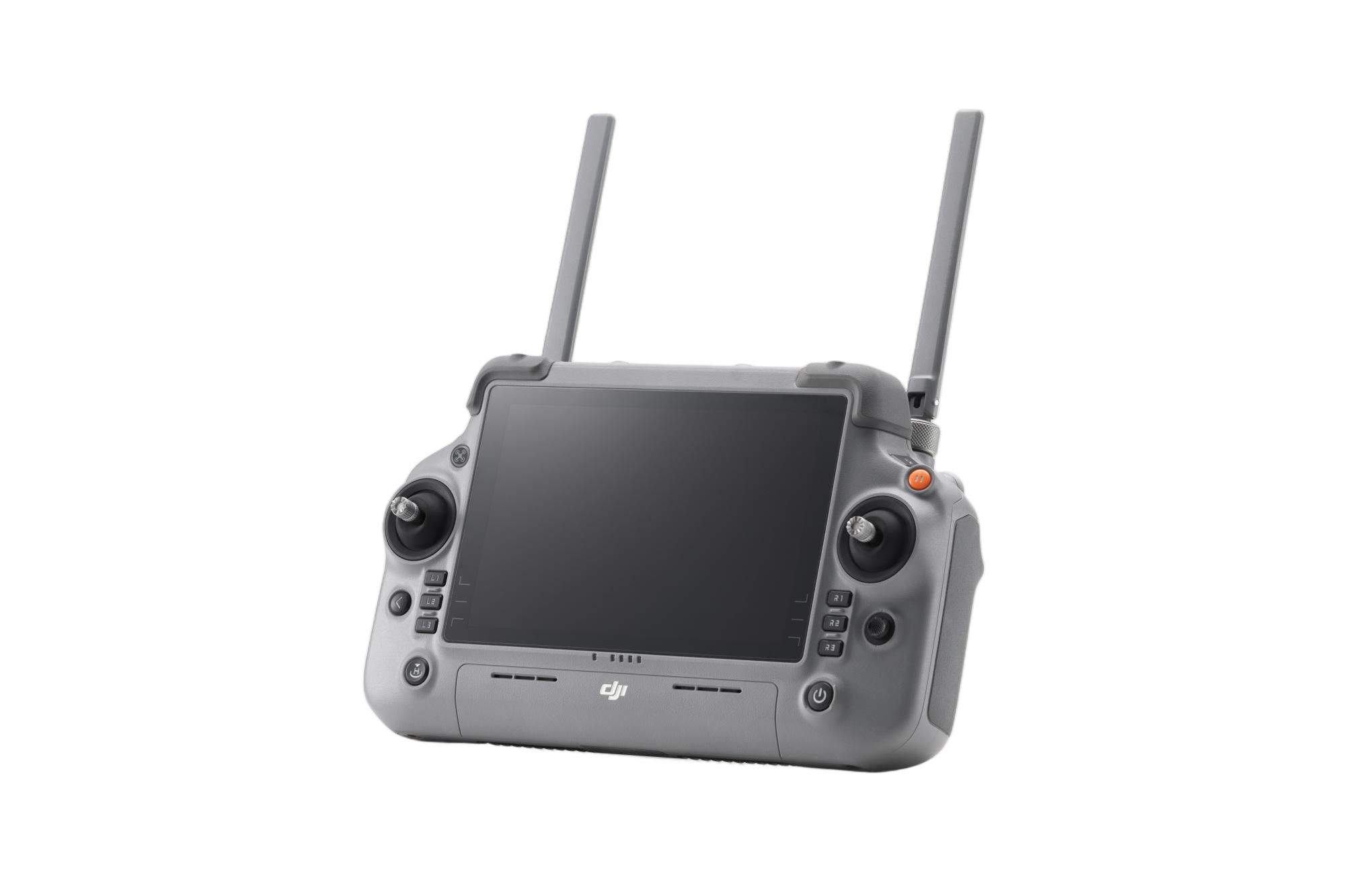

Flight Simulator Display Interface
Specification Details
Compatibility DJI Matrice 4T / Matrice 4E
Operating System Android 11
Panel Type LCD
Display Size 7.02"
Native Resolution 1920 x 1200
Touchscreen Yes
Maximum Brightness 1400 nits / cd/m2
USB I/O 1 x USB-C Female Input/Output, 1 x USB-A Female Input/Output
Video I/O 1x HDMI 1.4 Output
Media/Memory Card Slot Single Slot: microSD/microSDHC/microSDXC
Internal Storage 128 GB
Wireless Wi-Fi 6E (802.11ax) / Bluetooth 5.2 / 5.8 GHz Radio/RF / GPS / 2.4 GHz Radio/RF / Galileo / 5.1 GHz Radio/RF / BeiDou
Mobile App Compatible No
Global Positioning BeiDou, Galileo, GPS
Max Transmission Distance Unobstructed and Free of Interference
FCC: 15.5 Miles / 25 km
CE: 7.5 Miles / 12 km
SRRC: 7.5 Miles / 12 km
MIC: 7.5 Miles / 12 km
Transmission Bands & Power Operating Band: 2.4000 to 2.4835 GHz, 5.1GHz (Receive Only), 5.725 to 5.850 GHz
Power (EIRP): 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC); 5.1 GHz: <23 dBm (CE); 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)
Wi-Fi Features Wi-Fi Direct and Wireless Display, 2×2 MIMO, DBS with Dual MAC (Up to 1774.5 Mb/s)
Operating Bands: 2.4 GHz, 5.1 GHz, 5.8 GHz
Bluetooth Details Operating Frequency: 2.400 to 2.4835 GHz
Transmitter Power (EIRP): <10 dBm
Battery Chemistry Lithium
Battery Capacity 6500 mAh / 46.8 Wh
Recharge Time 2 Hours
Maximum Battery Life 3.8 Hours
DC Input Power 20 VDC at 3.25 A
Power Consumption 12.5 W
Color Gray
Environmental Resistance Dust/Water-Resistant (IP54)
Operating Conditions -4 to 122°F / -20 to 50°C
Storage Conditions -22 to 113°F / -30 to 45°C
Dimensions 10.6 x 6.4 x 3.7" / 268 x 163 x 94.5 mm
Weight 2.54 lb / 1.15 kg (Without External Battery)
Compatible Series
  • DJI Matrice 4D Series
  • DJI Matrice 4T industry series models
  • DJI Matrice 4E industry series models
  • DJI Matrice 400
Frequently Asked Questions

What is the maximum transmission range of this remote control?

Under unobstructed and interference-free conditions, the transmission range reaches up to 15.5 miles (25 km) under FCC standards, and up to 7.5 miles (12 km) under CE, SRRC, and MIC standards.

How bright is the screen and can it be viewed under direct sunlight?

Yes. The remote control features a 7.02" LCD touchscreen display with a native resolution of 1920 x 1200 and a high brightness of 1400 nits, which ensures high visibility even in bright outdoor environments.

What weatherproofing and operating temperature limits does it have?

The controller is rated IP54 for dust and water resistance. It has a broad operating temperature range of -20°C to 50°C (-4°F to 122°F), allowing it to work reliably in harsh climates.

What is the battery capacity and how long does it take to fully charge?

It features a 6500 mAh (46.8 Wh) Lithium battery that provides up to 3.8 hours of maximum battery life. It can be fully recharged in approximately 2 hours.

Does this model have a built-in HDMI port for external streaming?

Yes, it features a dedicated HDMI 1.4 output port on the body. This allows operators to output a clean, interface-free live feed directly to external monitors or large screens.

Which drone systems is this controller compatible with?

It is compatible with the DJI Matrice 4T and Matrice 4E models, the DJI Matrice 4D Series, and the DJI Matrice 400 system.
