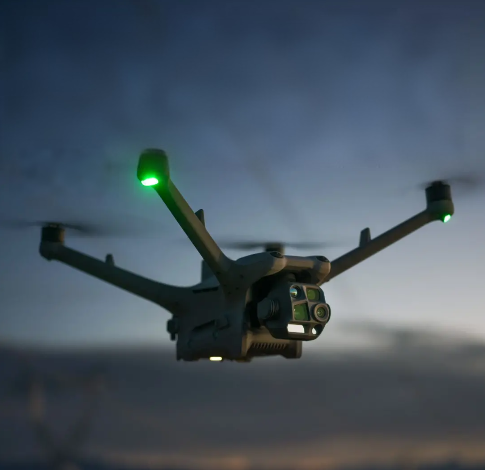

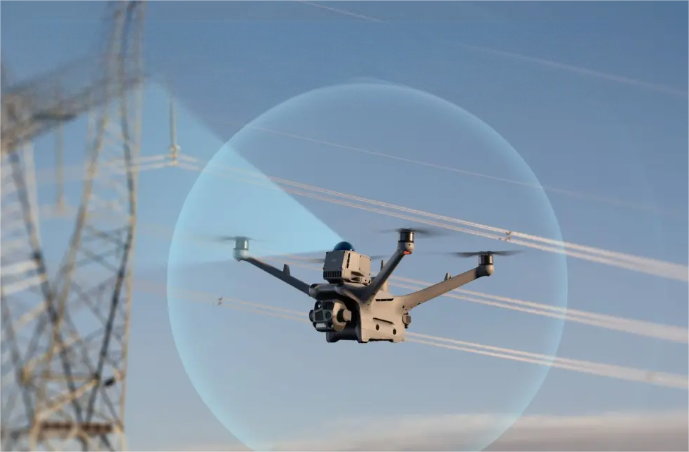

Features precise wire-level obstacle avoidance, low-light positioning, and airborne relay capability (via DJI RC Plus 2 Enterprise) for extended operational range.
Matrice 4TD Series drones are equipped with medium tele and tele cameras with foreground stabilisation. The medium tele camera is effective for medium-range inspections, detecting pins and cracks from 10 meters, and clearly reading instrument data at substations.
It offers full-color night vision, thermal cameras (4TD adds NIR), and upgradeable accessories (spotlight, voice speaker, etc.) for diverse scenarios.
Equipped with DJI Pilot 2, it supports vehicle detection, laser-based marking, and linear/area surveying to boost task efficiency.

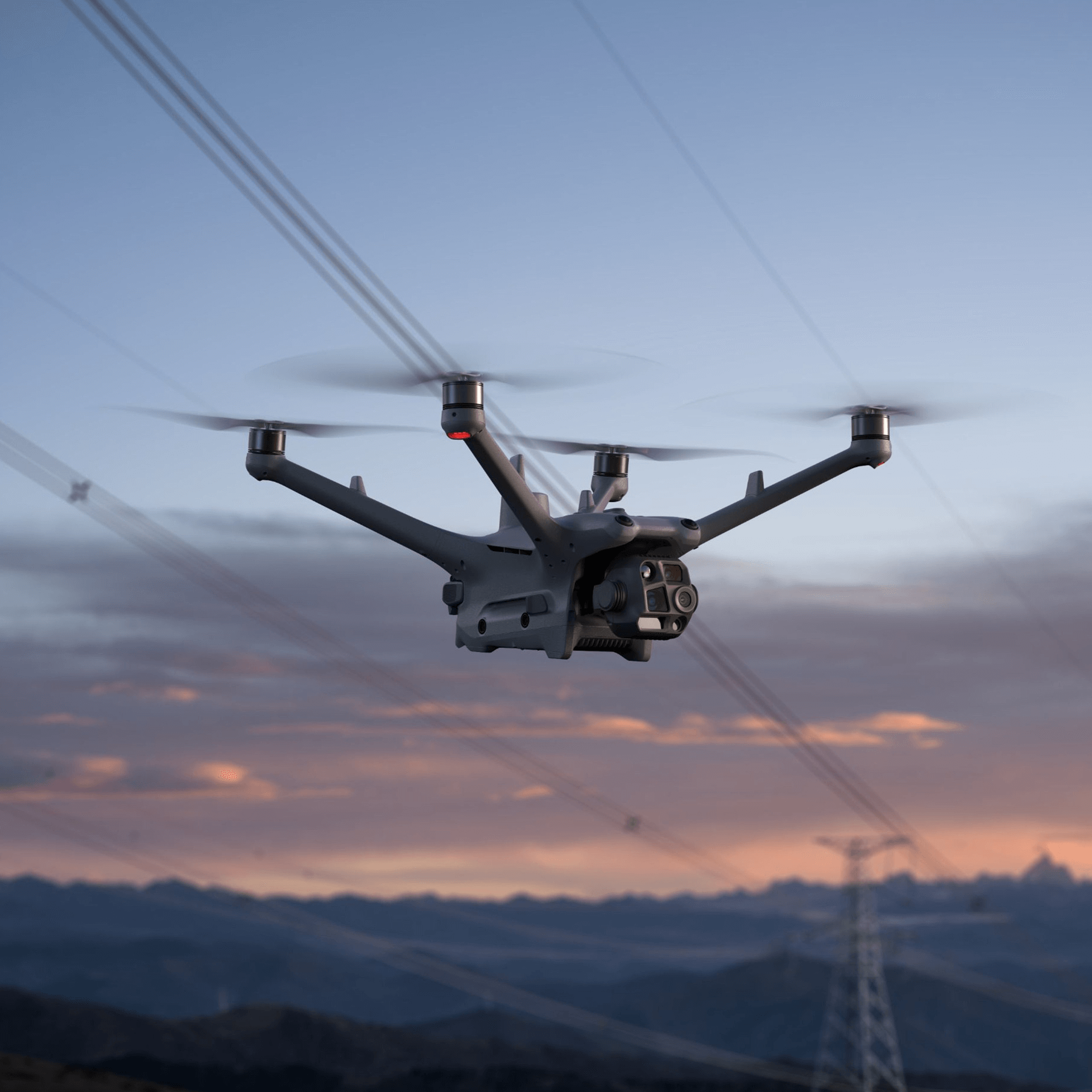

Matrice 4TD features enhanced visual positioning, obstacle avoidance, night scene mode, full-color night vision and medium tele/tele cameras. Matrice 4TD adds NIR light and a thermal camera.

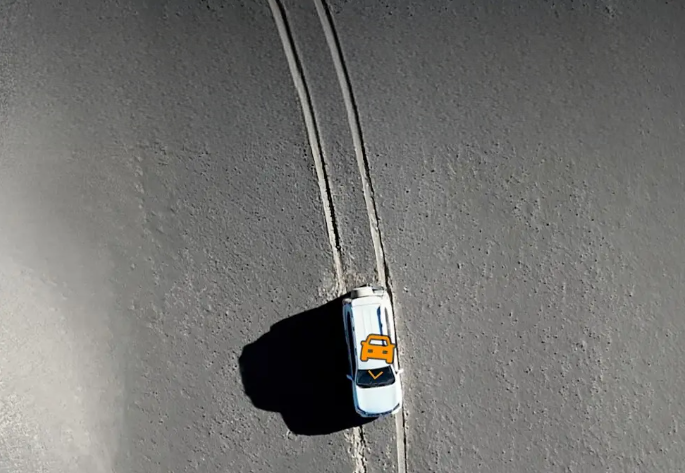

The upgraded telephoto stabilization makes foreground subjects stable and clear during telephoto shooting at 10x zoom or higher. In scenarios such as public safety and inspections, subject details are clearly visible.
With DJI Pilot 2, Matrice 4TD supports vehicle and vessel detection, laser range finder-based point marking, linear-/area-based surveying, etc.
Providing options such as Gimbal-Following Spotlight, Real-time Voice Speaker, D-RTK 3 Relay and DJI RC Plus 2 Enterprise Remote Controller.

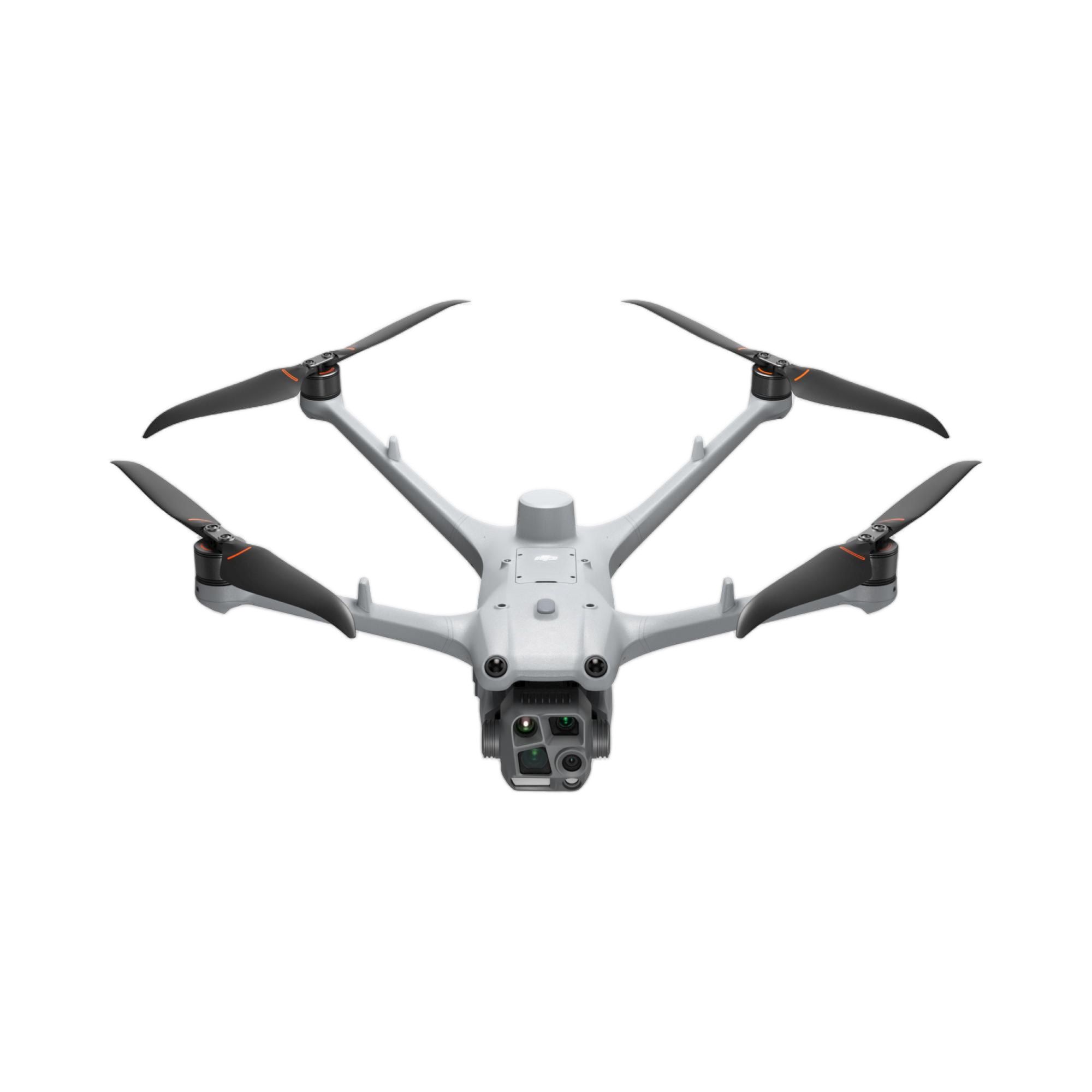

The Matrice 4 series supports a new 5-directional oblique capture. The gimbal can intelligently rotate and shoot at multiple angles based on the survey area, achieving the effect of multiple shots in a single flight compared to previous models, significantly enhancing the efficiency of small drone oblique photography.
| Specification | Details |
|---|---|
| Maximum Flight Time | 54 Minutes |
| Remote ID | Yes |
| Camera System |
Wide: 48 MP, 1/1.3"-Type CMOS Sensor with 24mm-Equivalent, f/1.7 Lens (82° FoV) Medium Telephoto: 48 MP, 1/1.3"-Type CMOS Sensor with 70mm-Equivalent, f/2.8 Lens (35° FoV) Telephoto: 48 MP, 1/1.5"-Type CMOS Sensor with 168mm-Equivalent, f/2.8 Lens (15° FoV) Thermal: Vanadium Oxide (VOX) Sensor with -40 to 932°F / -40 to 500°C Measurement Range |
| Maximum Video Resolution |
Standard: Up to UHD 4K at 30 fps Thermal: Up to 640 x 512 at 30 fps |
| Still Image Support |
Wide: Up to 48 MP (JPEG) Medium Telephoto: Up to 48 MP (JPEG) Telephoto: Up to 48 MP (JPEG) |
| Sensing System | Omnidirectional with Infrared Enhancement |
| Weight | 4.6 lb / 2090 g (with Maximum Payload) |
The Matrice 4TD Series offers an impressive maximum flight time of up to 54 minutes, allowing for extended operations and larger coverage in a single flight.
It features a comprehensive multi-sensor payload, including a 48 MP Wide camera, a 48 MP Medium Telephoto camera, a 48 MP Telephoto camera, and a high-resolution Thermal Vanadium Oxide (VOX) sensor for thermal imaging.
The gimbal intelligently rotates and captures photos at multiple angles automatically during flight. This achieves the layout and resolution of five separate shots in a single flight pass, significantly optimizing surveying and mapping productivity.
Yes, it features an omnidirectional sensing system with infrared enhancement, supporting wire-level obstacle avoidance, low-light positioning, and full-color night vision. The Matrice 4TD also adds NIR light and thermal detection for advanced dark-environment operations.
Compatible accessories include a Gimbal-Following Spotlight, Real-time Voice Speaker, D-RTK 3 Relay, and the DJI RC Plus 2 Enterprise Remote Controller, adapting to a wide range of public safety and inspection needs.
